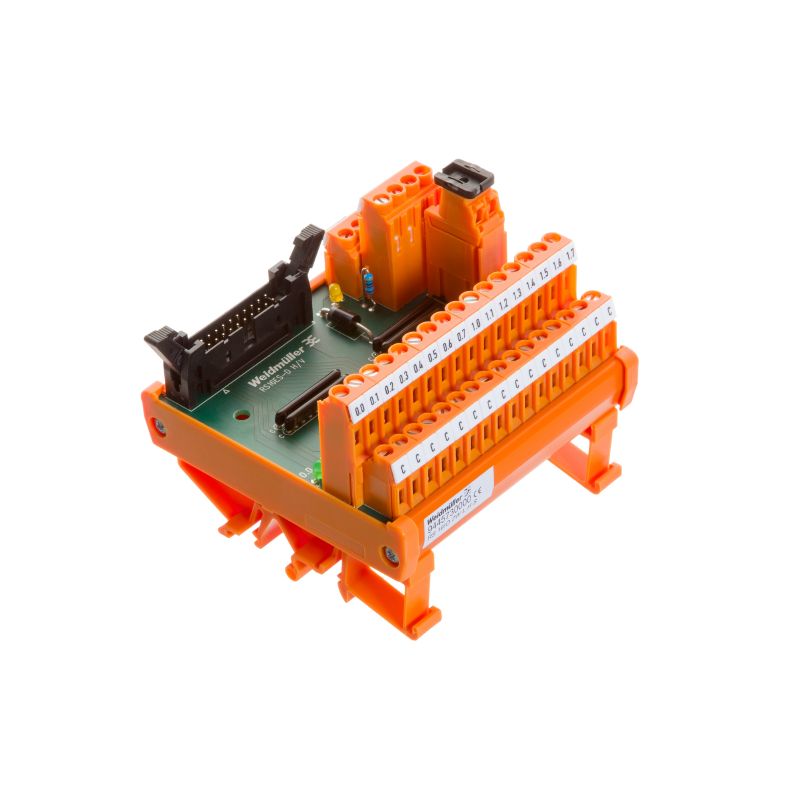

9445730000 - RS 16IO 2W 24V LED Status Display Module

SKU: SKU: 9445730000 Download PDF

Select a Variant:

9445730000 - RS 16IO 2W 24V LED Status Display Module

SET THE QTY:

Now $82.85 Web pricing policy

~~BEFORE $0.00~~ Now $82.85 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the RS 16IO 2W L H S, featuring a convenient 2-wire interface with a secure screw connection This device adheres to RoHS standards and incorporates an LED indicator for each channel to display operational status Engineered for consistent performance, it operates effectively in temperatures ranging from -25 to 50 °C and can be stored safely between -40 to 60 °C Designed to handle an operating voltage of 24 V DC, each channel supports a maximum current of 1 A.

For connectivity, it utilizes a LP2N 508mm configuration on the field side, while the control side is equipped with a plug-in connector in accordance with IEC60603-13 / DIN41651 specifications.

Features and Benefits:

•Common pole polarity can be configured as positive or negative using a jumper..

•LED indicators for supply voltage and status display..

•Configured for easy connection with screw connections on both the control and supply sides..

Specifications:

Depth	72 mm
Height	87 mm
Width	87 mm
Net weight	211 g
Operating temperature	-25...50 °C
Storage temperature	-40...60 °C
Rated voltage U N	24 V DC
Rated current I N	1 A
Total operating current	2 A
Operating voltage	24 V DC ± 10%
Rated insulation voltage	<50 V AC
Surge voltage category	III
Pollution severity level	2
Pulse voltage test (1,2/50μs)	0.8 kV
Connection (field side)	LP2N 5.08mm
Connection on control side	Plug-in connector in acc. with IEC60603-13 / DIN41651
Number of poles (control side)	20-pole plug
