9445700000 - UL Certified 1-Wire Interface Device, 72mm Depth

9445700000 - UL Certified 1-Wire Interface Device, 72mm Depth

SKU: 9445700000   Download PDF

Select a Variant:
  • 9445700000 - UL Certified 1-Wire Interface Device, 72mm Depth
Qty:
Now $45.61   Web pricing policy
BEFORE   $0.00 Now $45.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

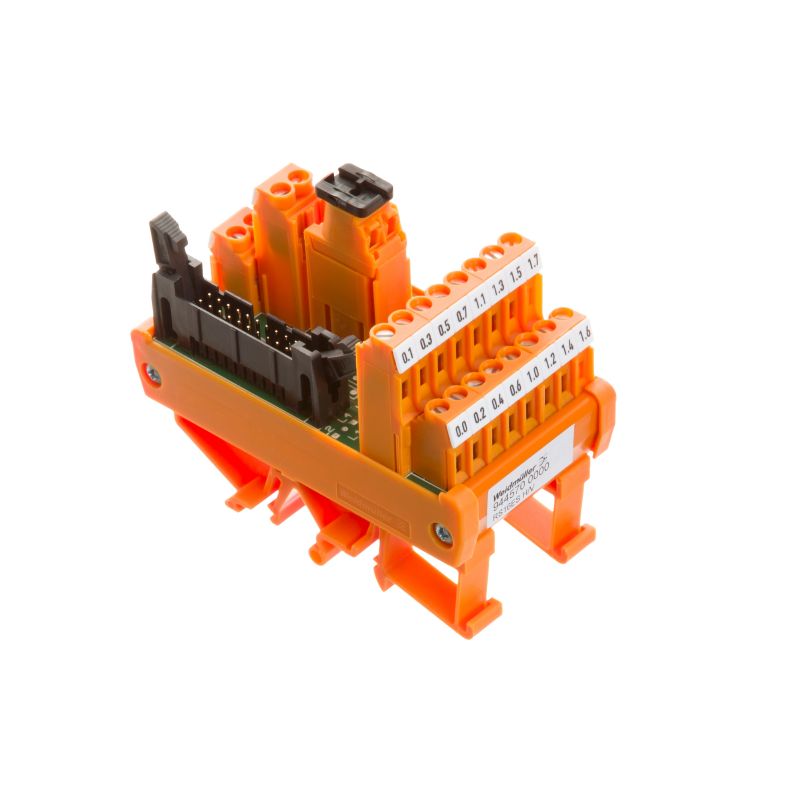

Introducing the RS 16IO 1W H S, a reliable solution for one-wire interface needs featuring a secure screw connection This device adheres to RoHS standards and is UL certified (Certificate No E141197) Measuring 72 mm in depth, 87 mm in height, and 46 mm in width, it has a lightweight design at just 132 g Functional in a temperature range of -25 to 50 °C, it can also be stored safely between -40 to 60 °C.

With a rated current of 1 A, this unit is designed to support operating voltages of up to 25 V AC and 50 V DC Connections are made via a 508 mm LP2N on the field side and a standardized 20-pole plug on the control side, compatible with IEC60603-13 / DIN41651 standards Perfect for various applications, the RS 16IO 1W H S combines versatility with efficiency.

Features and Benefits:

    •Compact dimensions with a screw connection.

    •RoHS compliant with exemption.

    •LED status of supply voltage indicated by yellow.

    •Total operating current capability of 2 A.

Specifications:

 Depth 72 mm
 Height 87 mm
 Width 46 mm
 Net weight 132 g
 Operating temperature -25 to 50 °C
 Storage temperature -40 to 60 °C
 Rated current I N 1 A
 Rated voltage U N ≤ 25 V AC, 50 V DC
 Rated voltage DC U N 24 V
 Rated current (supply) 2 A
 Rated current fuse (supply) 3.15 A
 Operating voltage 25 V AC / 50 V DC
 Max. current per channel 1 A
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Insulation test voltage AC 0.35 kV
 Connection (field side) LP2N 5.08 mm
 Connection on control side 20-pole plug
 Wiring system 1-wire
 Tightening torque 0.5 to 0.6 Nm
