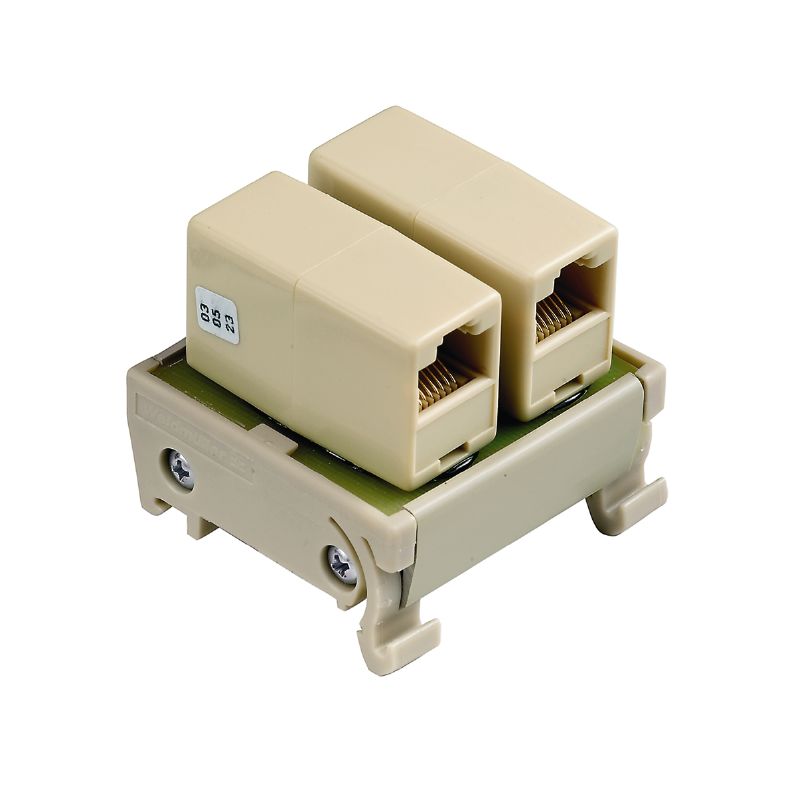

8555440000 - RJ45 2WAY Connector, 44mm Depth, RoHS Compliant

8555440000 - RJ45 2WAY Connector, 44mm Depth, RoHS Compliant

SKU: 8555440000   Download PDF

Select a Variant:
  • 8555440000 - RJ45 2WAY Connector, 44mm Depth, RoHS Compliant
Qty:
Now $52.52   Web pricing policy
BEFORE   $0.00 Now $52.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RS RJ45 2WAY, a versatile connectivity solution featuring dual RJ45 connectors for both field and control applications This device is fully RoHS compliant, supporting environmental standards without any exceptions It ensures reliable performance across a wide temperature spectrum, ranging from -40°C to 70°C for storage and 0°C to 55°C during operation With compact dimensions measuring 44 mm in depth, 45 mm in height, and 47 mm in width, it weighs only 60 grams, making it lightweight and easy to handle.

The contact material on the control side is crafted from phosphor-bronze, enhanced with a 6µ gold plating, which facilitates a transmission speed of 100 MBit/s, ideal for Category 5 connections Engineered to sustain a 50 V voltage and support a maximum operating current of 15 A, this device adheres to DIN EN 50178 insulation coordination standards with a rated insulation voltage below 50 V AC Experience reliable, efficient connectivity with the RS RJ45 2WAY.

Features and Benefits:

    •Designed with two RJ45 plug-in connectors for ease of connection.

    •Compliant with RoHS regulations.

    •Extended temperature tolerance for storage and operation.

Specifications:

 Depth 44 mm
 Height 45 mm
 Width 47 mm
 Net weight 60 g
 Storage temperature -40...70 °C
 Operating temperature 0...55 °C
 Connection (field side) 2 x RJ45 plug-in connectors
 Connection on control side 2 x RJ45 connector
 Contact material (control side) Phosphor-bronze 6µ AU
 Transmission rate Cat. 5, 100 MBit/s
 Rated voltage 50 V
 Rated current per connection 1 A
 Total operating current 1.5 A
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage < 50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Insulation test voltage AC 0.35 kV
