8537180000 - Compact 26-Pole Connector, IEC Compliant, 64mm Depth

8537180000 - Compact 26-Pole Connector, IEC Compliant, 64mm Depth

SKU: 8537180000   Download PDF

Select a Variant:
  • 8537180000 - Compact 26-Pole Connector, IEC Compliant, 64mm Depth
Qty:
Now $52.74   Web pricing policy
BEFORE   $0.00 Now $52.74 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

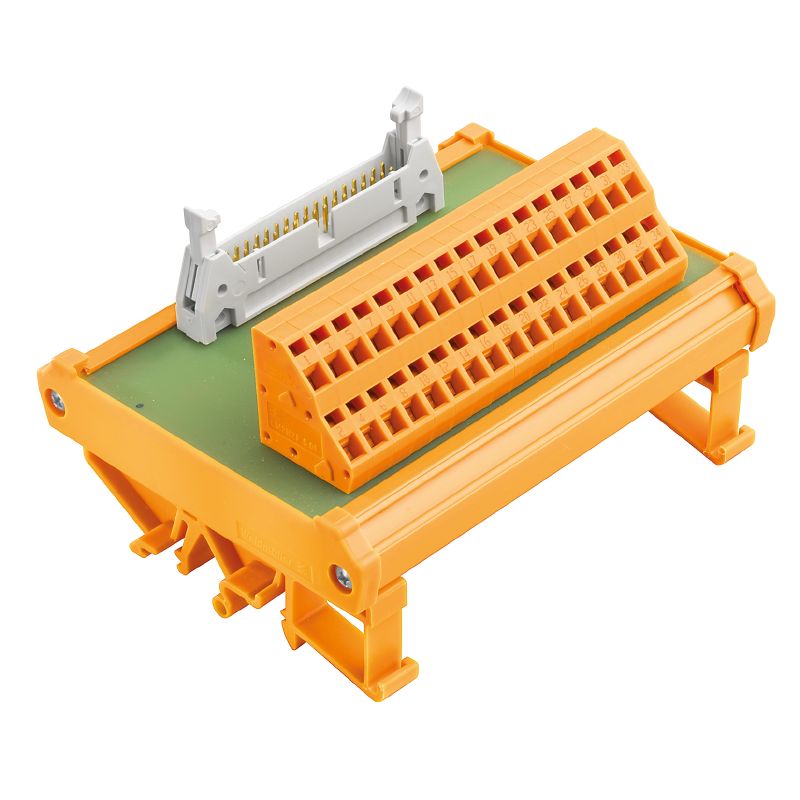

Introducing the RS F26 Z interface connector, a reliable plug-in solution compliant with IEC60603-13 and DIN41651 standards With its 26-pole tension-clamp connection, this compact connector guarantees secure connectivity Measuring 64 mm in depth, 87 mm in height, and 80 mm in width, it is lightweight at approximately 10502 grams It operates efficiently in temperatures ranging from 0 to 55°C and adheres to environmental regulations such as RoHS and REACH, making it a smart choice for your connectivity needs.

Features and Benefits:

    •Tension-clamp connection for secure wiring.

    •Compact design with a depth of 64 mm, height of 87 mm, and width of 80 mm.

    •Compliant with RoHS and REACH regulations.

    •Lightweight at 105.02 grams.

Specifications:

 Operating temperature 0...55 °C
 Storage temperature -40...70 °C
 Rated current 1 A
 Rated voltage ≤ 60 V AC / 75 V DC
 Connection type Tension-clamp connection

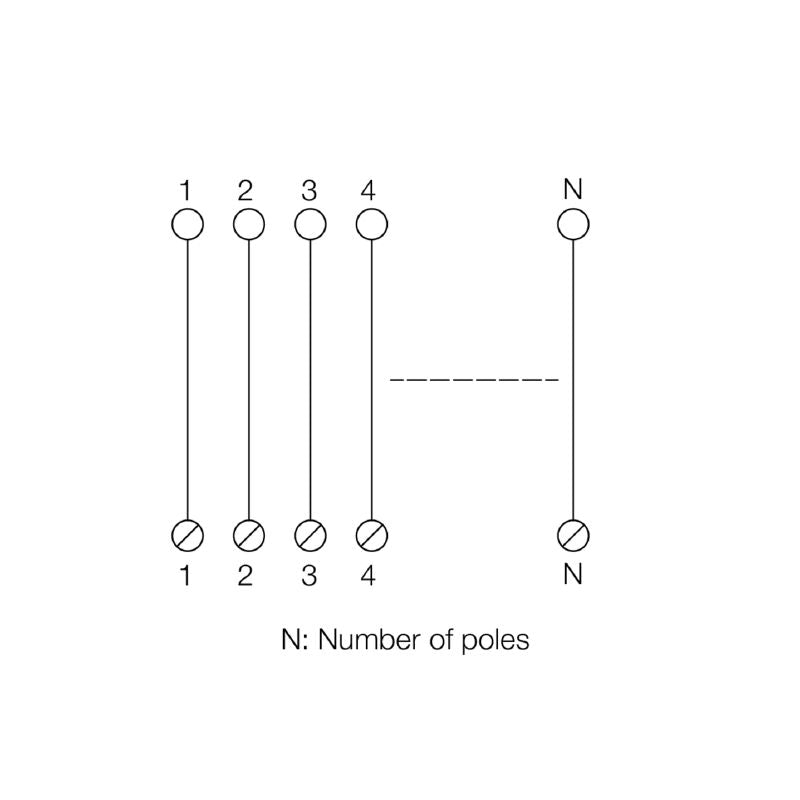

 Number of poles 26-pole
 Clamping range (max) 2.5 mm²
 Clamping range (min) 0.13 mm²
 Insulation voltage 100 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test 0.8 kV
