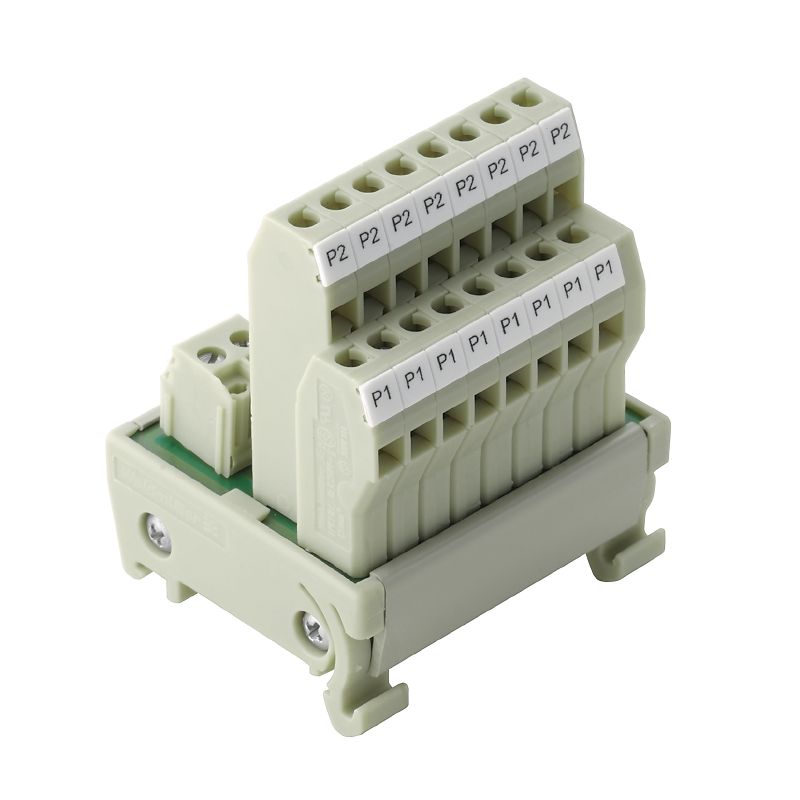

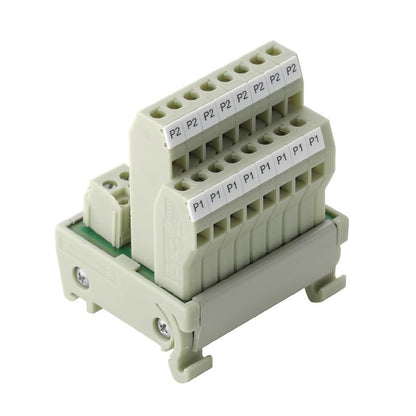

8252010000 - RS VERT8 Screw Connector, 64mm, RoHS Compliant, 5A Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS VERT8 LPK2, an expertly designed component featuring a secure screw connection via the RS VERT interface, complete with two pins This product meets all RoHS standards without exemptions, ensuring environmentally friendly use Measuring 64 mm in length, 45 mm in height, and 52 mm in width, it has a lightweight design at approximately 6798 grams This unit is suitable for a temperature range of -40 to 60 degrees Celsius during storage and operates efficiently in conditions between 0 to 55 degrees Celsius.

It’s intended for distribution PCB connectors and supports a maximum rated voltage of 30 V, with a current capacity of 5 A per connection Additionally, it adheres to insulation coordination standards as outlined in DIN EN 50178, making it a reliable choice for your electrical needs.

Features and Benefits:

•Compliance with RoHS regulations.

•Suitable for various conductor sizes with a clamping range from 0.15 mm² to 1.5 mm².

•Can handle flexible wire sizes of up to 4 mm².

•Screw connection type for secure fittings.

•Designed for PCB connections.

Specifications:
