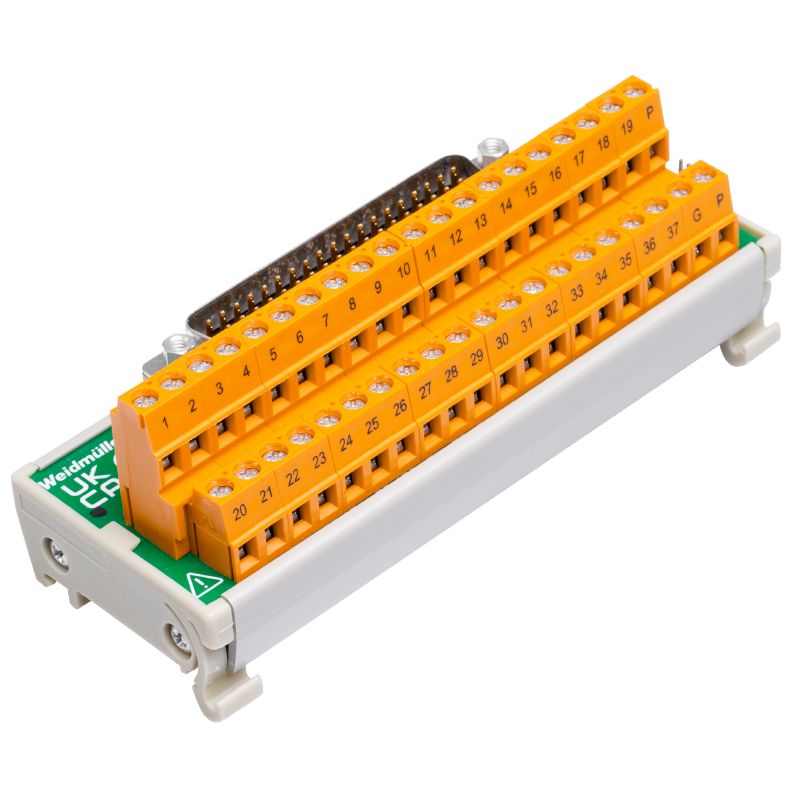

8233350000 - 15-Pole D-Sub Connector with Screw Lock, RoHS Certified

8233350000 - 15-Pole D-Sub Connector with Screw Lock, RoHS Certified

SKU: 8233350000 Download PDF

Variant:
  • 8233350000 - 15-Pole D-Sub Connector with Screw Lock, RoHS Certified
Now $40.04
BEFORE   $0.00 Now $40.04
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS SD15S UNC LPK2, a robust 15-pole D-sub connector engineered in accordance with IEC 60807 and DIN 41652 regulations This connector boasts a reliable screw connection design that ensures stable and secure connections Withstanding storage temperatures from -40°C to 70°C and operational temperatures between 0°C and 55°C, it is versatile enough for various environments Weighing in at 103g, this RoHS-certified product also features a protective earth connection and accommodates different wire cross-sections, making it an essential component for your connectivity needs.

Features and Benefits:

    •RoHS and REACH compliant.

    •Includes 15-pole configuration for robust connectivity.

    •Supports a wide clamping range for various wire sizes.

    •Durable construction with a screw connection design.

Specifications:

 Depth 66 mm
 Height 45 mm
 Width 61 mm
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I 1.5 A
 Rated voltage U 100 V

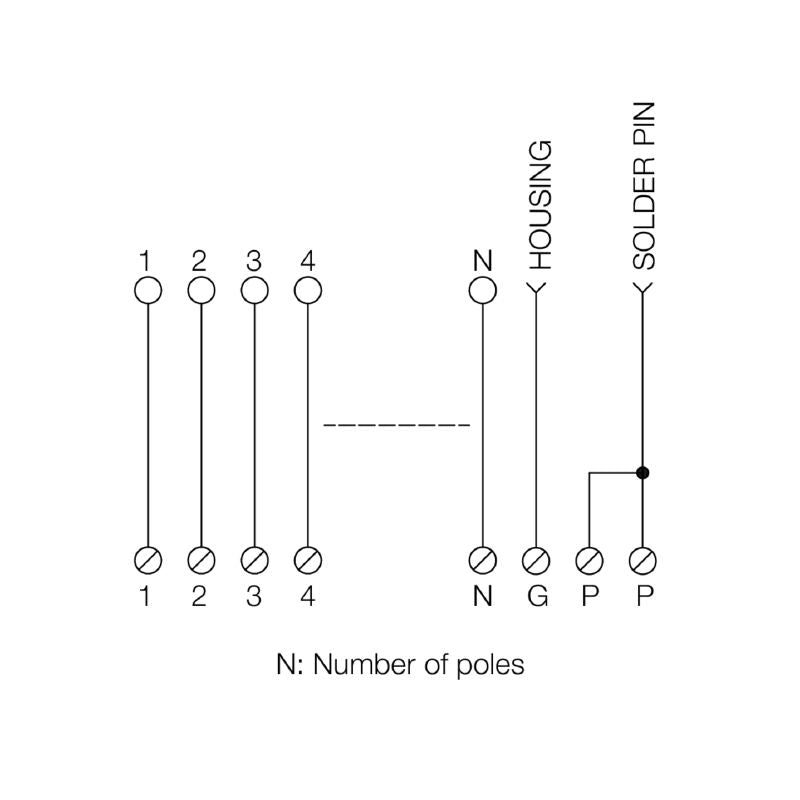

 Connection (field side) LPK 2H 5.08mm
 Connection on control side D-sub connectors, acc. to IEC 60807 / DIN 41652
 Design of locking system UNC 4/40
 Number of poles (control side) 15-pole plug
 Rated insulation voltage 100 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Clamping range, max. 1.5 mm²
 Clamping range, min. 0.15 mm²
 Flexible with sleeve, max. 2.5 mm²
 Flexible with sleeve, min. 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
