8174860000 - 32-Pole DIN Connector, 193mm Depth, RoHS Compliant

8174860000 - 32-Pole DIN Connector, 193mm Depth, RoHS Compliant

SKU: 8174860000 Download PDF

Variant:
  • 8174860000 - 32-Pole DIN Connector, 193mm Depth, RoHS Compliant
Now $62.64
BEFORE   $0.00 Now $62.64
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

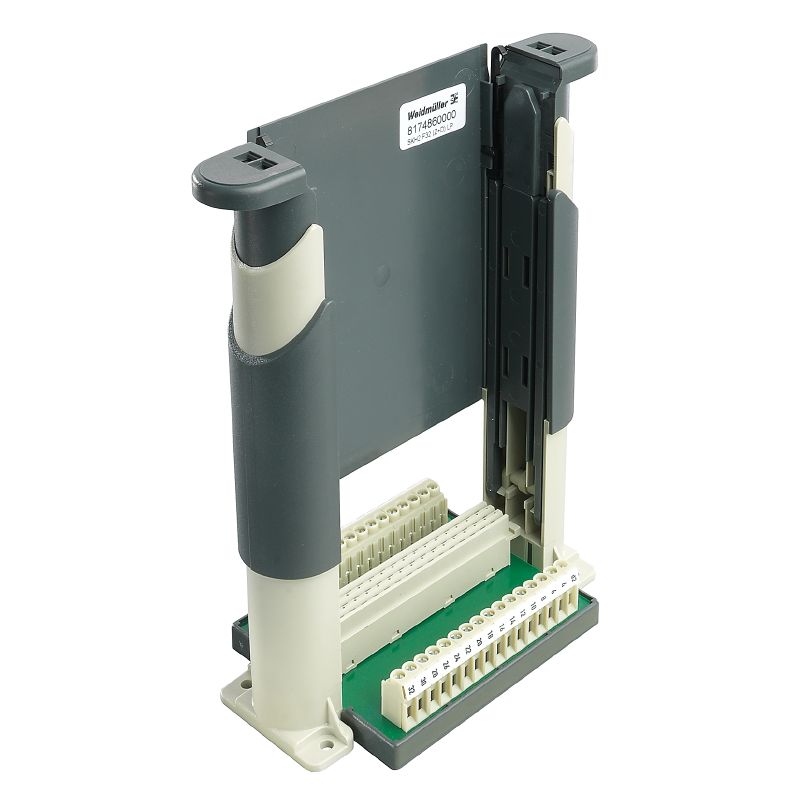

Introducing the SKH2 F32 (Z+D) LP female plug-in connector, expertly crafted to meet DIN 41612 standards, featuring 32 poles With a compact design, this connector measures 193 mm in depth, 160 mm in width, and stands 81 mm tall, weighing in at just 378 grams It complies with RoHS regulations and is built to withstand a storage temperature range of -40 to 60 degrees Celsius, with optimal operational conditions between 0 and 55 degrees Celsius.

This reliable connector is ideal for various applications requiring precision and durability.

Features and Benefits:

    •Compliant with RoHS and REACH SVHC standards.

    •Designed for 19-inch racks with a euro format of 100x160 mm.

    •Utilizes a screw connection for stability.

Specifications:

 Depth 193 mm
 Height 81 mm
 Width 160 mm
 Net weight 378 g
 Storage temperature -40...60 °C
 Operating temperature 0...55 °C
 Rated voltage 250 V UC
 Rated current per connection 4 A
 Insulation coordination According to DIN EN 50178
 Rated insulation voltage 250 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test 2.1 kV
 Insulation test voltage AC 1.2 kV
 Clamping range (max) 6 mm²
 Clamping range (min) 0.5 mm²
 Maximum wire cross-section (AWG) AWG 12
 Minimum wire cross-section (AWG) AWG 26
 Stripping length 6 mm
 Tightening torque (max) 0.6 Nm
 Tightening torque (min) 0.5 Nm
 Type of connection Screw connection
 Connection (field side) LP 5.08mm
 Connection on control side Plug-in connector, according to DIN 41612 female

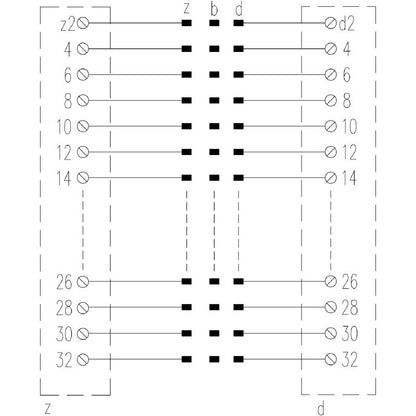

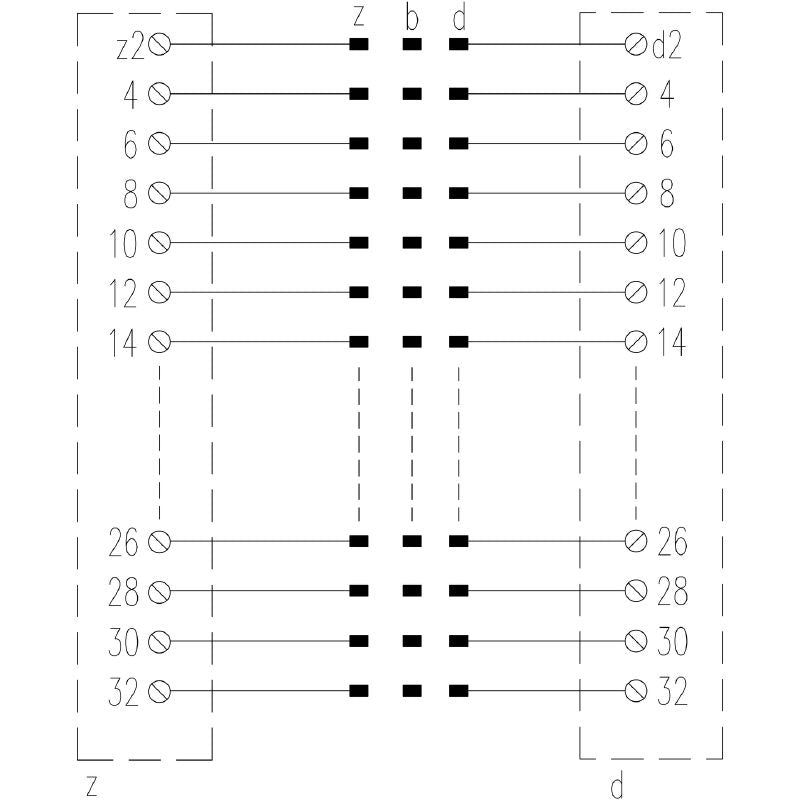

 Contact assembly z and d
 Number of poles (control side) 32-pole female
 Type (control side) 32F
