8174830000 - DIN 41612 Female 32D Connector, Temp Range -40 to 55°C

8174830000 - DIN 41612 Female 32D Connector, Temp Range -40 to 55°C

SKU: 8174830000 Download PDF

Variant:
  • 8174830000 - DIN 41612 Female 32D Connector, Temp Range -40 to 55°C
Now $59.15
BEFORE   $0.00 Now $59.15
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

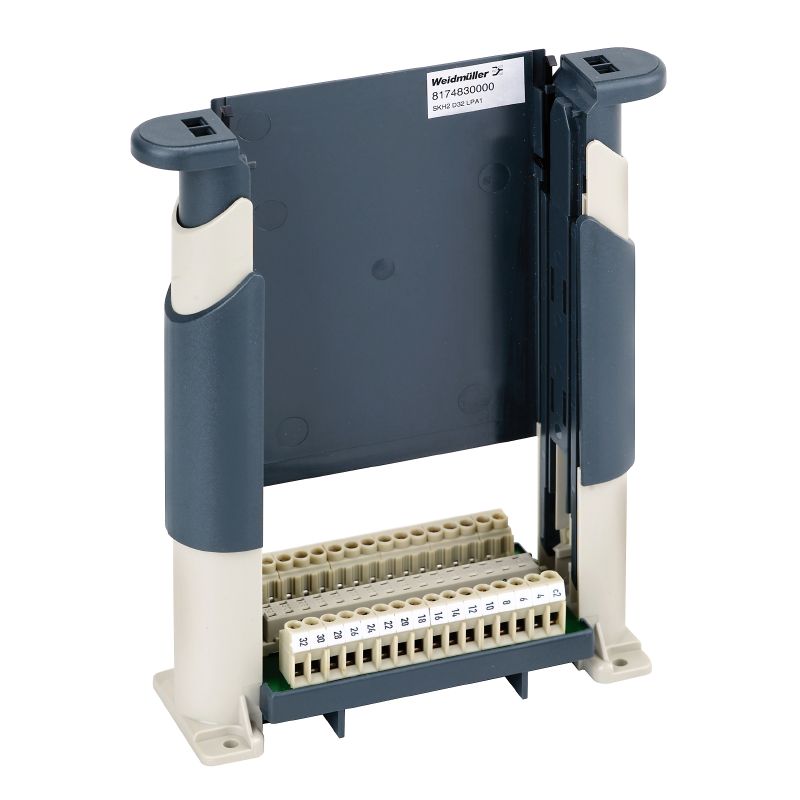

Introducing the SKH2 D32 LP interface plug-in connector, designed with a 32D configuration that adheres to the DIN 41612 female standard This connector is identified by the ordering number 8174830000 and the GTIN 4008190060800 It operates efficiently in a range of temperatures from 0 °C to 55 °C and can be stored safely at temperatures between -40 °C and 60 °C The product meets RoHS compliance regulations, ensuring it is free from SVHC substances in concentrations greater than 0.

1 wt%.

Features and Benefits:

    •Compliant with RoHS regulations.

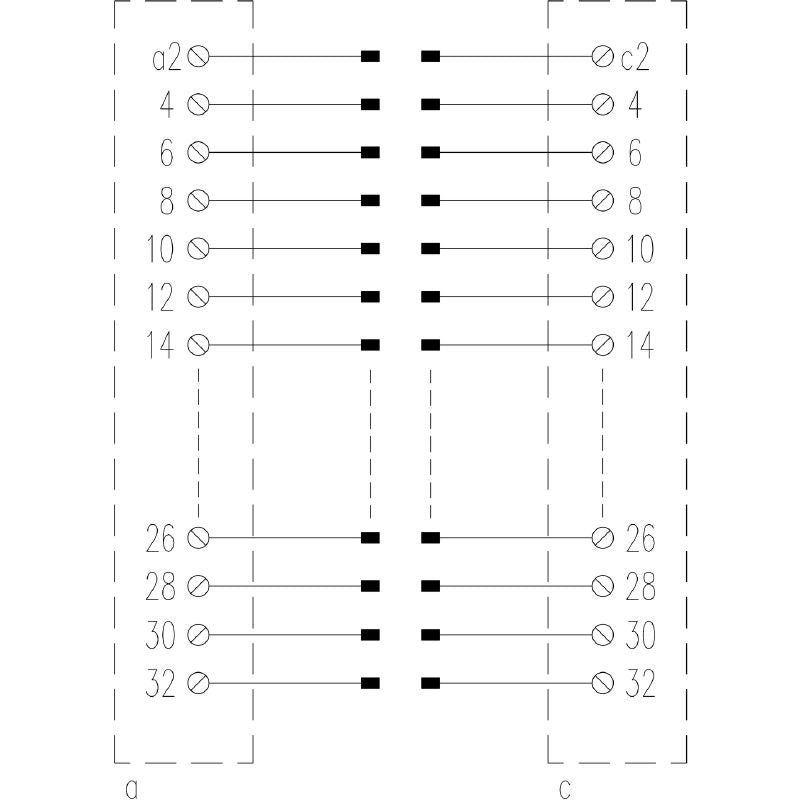

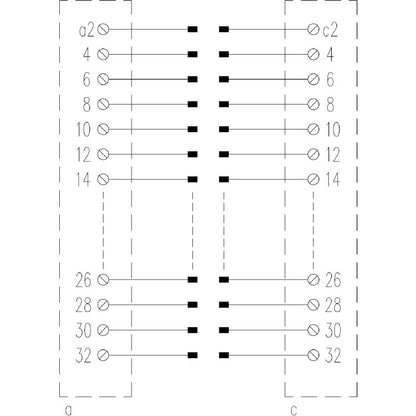

    •Features 32-pole female connecting capabilities.

    •Rated voltage of 250 V UC.

    •Designed for 19" racks with a pluggable board in a 100x160 mm euro format.

Specifications:

 Depth 193 mm
 Height 55 mm
 Width 160 mm
 Net weight 340 g
 Storage temperature -40...60 °C
 Operating temperature 0...55 °C
 Rated current per connection 4 A
 Insulation coordination According to DIN EN 50178
 Rated insulation voltage 250 V
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test 2.1 kV
 Insulation test voltage AC 1.2 kV
 Clamping range (max) 6 mm²
 Clamping range (min) 0.5 mm²
 Tightening torque (max) 0.6 Nm
 Tightening torque (min) 0.5 Nm
 Type of connection Screw connection
