8155570000 - 50-Pole Plug-in Connector, 66mm Depth, RoHS Compliant

8155570000 - 50-Pole Plug-in Connector, 66mm Depth, RoHS Compliant

SKU: 8155570000   Download PDF

Select a Variant:
  • 8155570000 - 50-Pole Plug-in Connector, 66mm Depth, RoHS Compliant
Qty:
Now $66.80   Web pricing policy
BEFORE   $0.00 Now $66.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

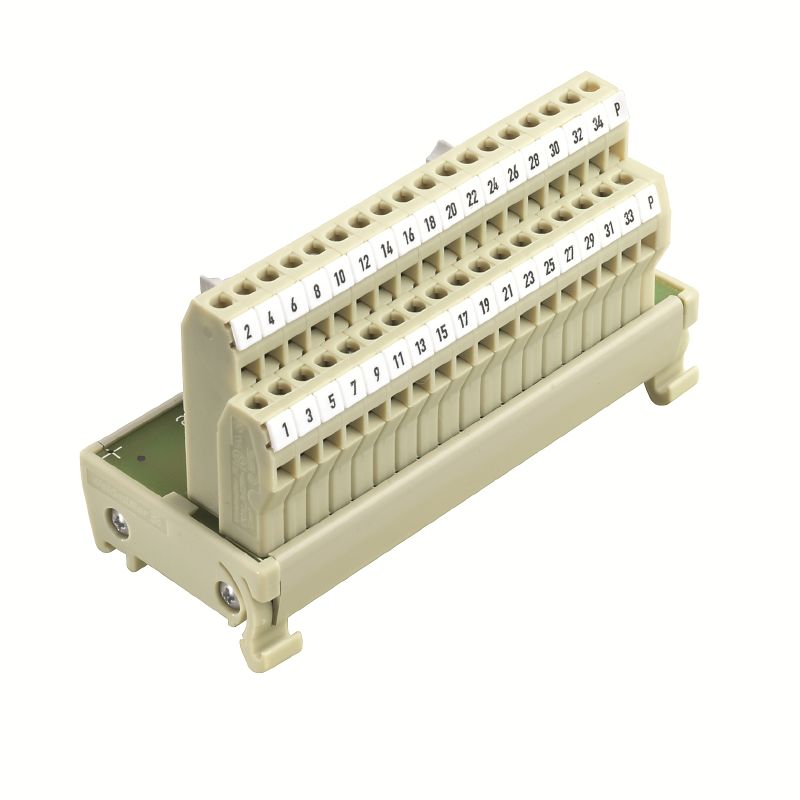

Introducing the RS F50 LPK 2H/52, a versatile 50-pole plug-in connector engineered to meet IEC60603-13 and DIN41651 standards This connector features a reliable screw connection and adheres to RoHS regulations for safety and compliance With UL certification reference E141197, it is suitable for a variety of applications Its compact dimensions of 66 mm in depth, 45 mm in height, and 151 mm in width provide ergonomic efficiency, making it an excellent choice for your connection needs.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Plug-in connector suitable for applications requiring compliance with IEC60603-13 / DIN41651.

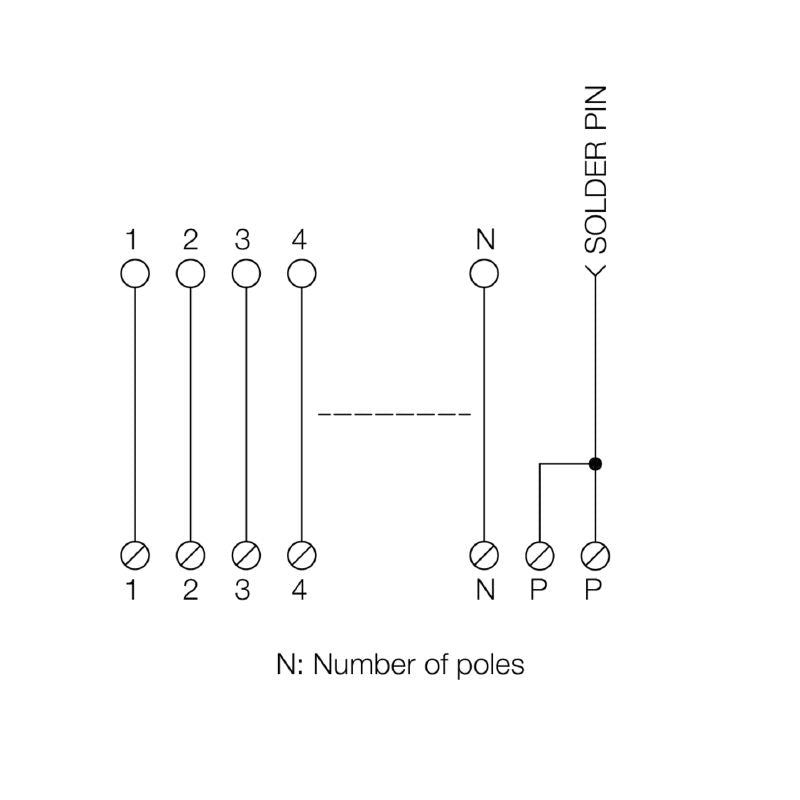

    •Includes a protective earth connection.

Specifications:

 Depth 66 mm
 Height 45 mm
 Width 151 mm
 Net weight 245 g
 Storage temperature -40...70 °C
 Operating temperature 0...55 °C
 Rated voltage 60 V AC / 75 V DC
 Rated current 1 A
 Connection (field side) LPK 2H 5.08mm
 Connection on control side Plug-in connector in acc. with IEC60603-13 / DIN41651
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
 Type of connection Screw connection
