Product Information

Description:

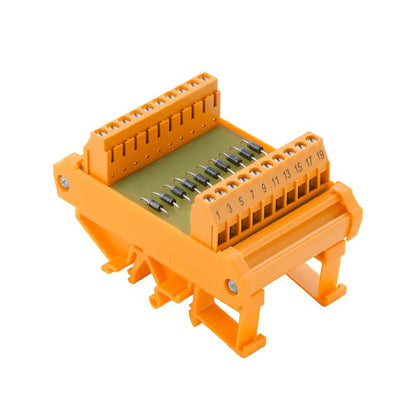

Introducing the RSD 10 LP/LP, a reliable diode equipped with a screw connection for secure operation This product meets RoHS standards and is designed to function at an operating voltage of 230 V with a maximum current capacity of 1 A It is suitable for a variety of applications, boasting an impressive operational temperature range of -40 to 60 °C for storage and 0 to 55 °C when in use Perfectly engineered for dependable performance across diverse environments.

Features and Benefits:

•Free diode with screw connection.

•RoHS compliant with exemption.

•Operating temperature range of 0 to 55 °C.

•Compact dimensions for versatile installations.

Specifications:

Dimensions	{'Depth': '42 mm', 'Height': '70 mm', 'Width': '60 mm'}
Rated data UL	{'Operating temperature UL, max.': '25 °C', 'Operating temperature UL, min.': '0 °C', 'Rated current I N': '1 A', 'Rated current I max': '1 A', 'Rated voltage U N': '230 V'}

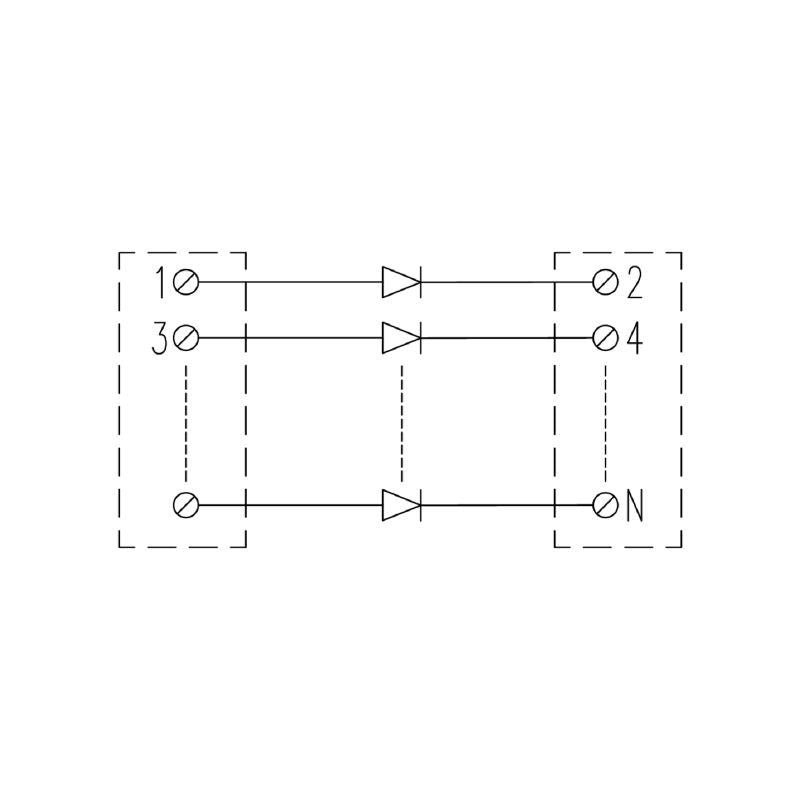

Connection data	{'Configuration': 'Through diode', 'Type of component': 'Diode 1N4007'}
Components	{'Diode': '1N4007', 'Max. recurring peak voltage': '1,000 V', 'Rated insulation voltage': '230 V', 'Surge voltage category': 'II', 'Pollution severity level': '2'}
Clamping range	{'Max.': '6 mm²', 'Min.': '0.5 mm²'}
Max. wire cross-section	{'AWG': {'Max': '12', 'Min': '26'}}
Stripping length	6 mm
Tightening torque	{'Max': '0.6 Nm', 'Min': '0.5 Nm'}
