8005211001 - 15-Pole D-Sub Connector 76mm Depth, RoHS Compliant

8005211001 - 15-Pole D-Sub Connector 76mm Depth, RoHS Compliant

SKU: 8005211001 Download PDF

Variant:
  • 8005211001 - 15-Pole D-Sub Connector 76mm Depth, RoHS Compliant
Now $54.53
BEFORE   $0.00 Now $54.53
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our 15-pole female D-sub connector, engineered for secure screw connections and aligned with IEC 60807 and DIN 41652 standards This dependable connector is versatile, making it ideal for various applications Certified and compliant with RoHS regulations—with exceptions for specific materials—this connector measures 76 mm in depth, 87 mm in height, and 60 mm in width, with a weight of 123 grams.

It operates efficiently in temperatures ranging from 0 to 55 °C and can be stored in environments from -40 to 70 °C Additionally, it comes with relevant UL approvals, ensuring quality and reliability.

Features and Benefits:

    •15-pole female configuration.

    •Screw connection type.

    •Compliant with IEC 60807 / DIN 41652 standards.

    •RoHS compliant with exemption.

    •Environmental compliance with SCIP.

Specifications:

 Depth 76 mm
 Height 87 mm
 Width 60 mm
 Net weight 123 g
 Operating temperature (max) 50 °C
 Operating temperature (min) 0 °C
 Rated current (max) 1.5 A
 Rated voltage 100 V
 Storage temperature -40...70 °C
 Connection (field side) LL2N 5.08 mm

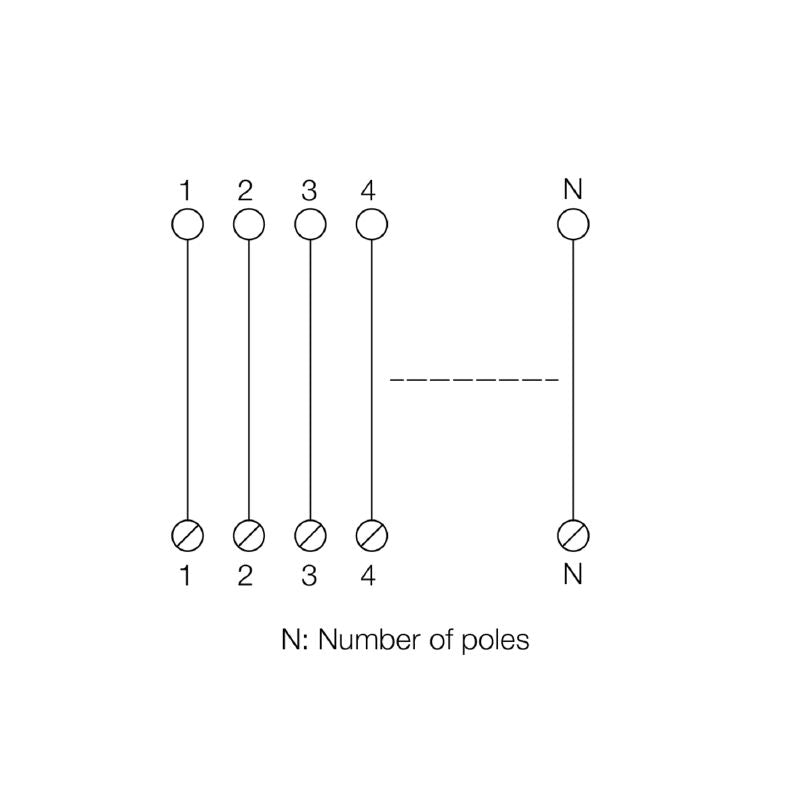

 Number of poles 15-pole female
 Insulation coordination According to DIN EN 50178
 Surge voltage category II
 Pollution severity level 2
 Rated insulation voltage 100 V
 Tightening torque (max) 0.6 Nm
 Tightening torque (min) 0.5 Nm
 Type of connection Screw connection
 Max wire cross-section (AWG) AWG 12
 Min wire cross-section (AWG) AWG 26
 Clamping range (max) 6 mm²
 Clamping range (min) 0.5 mm²
