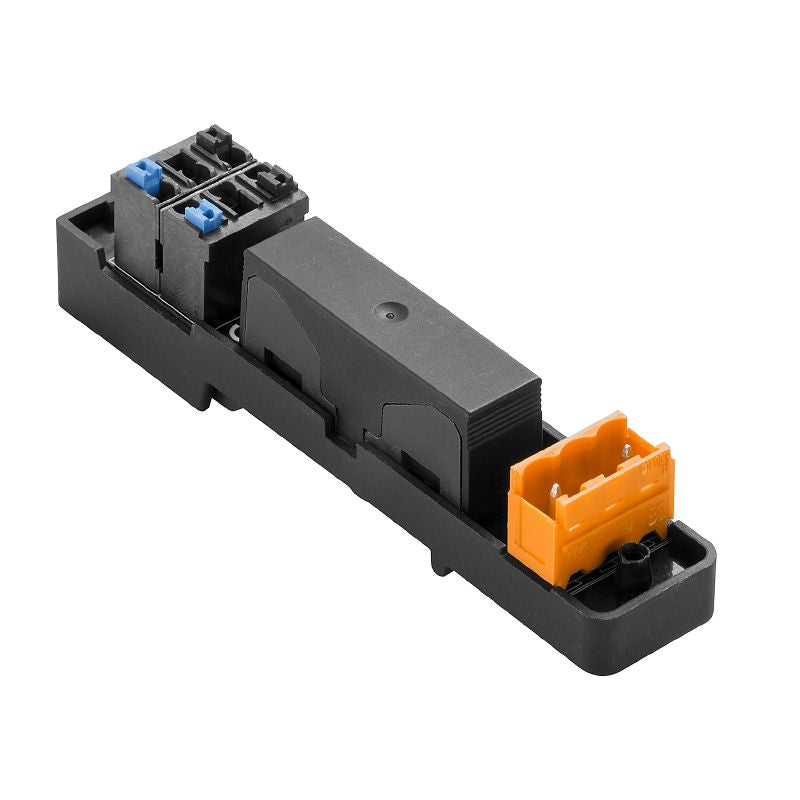

8000118954 - RoHS Compliant 230V Connector, 93.7mm Height, 6A Max Current (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

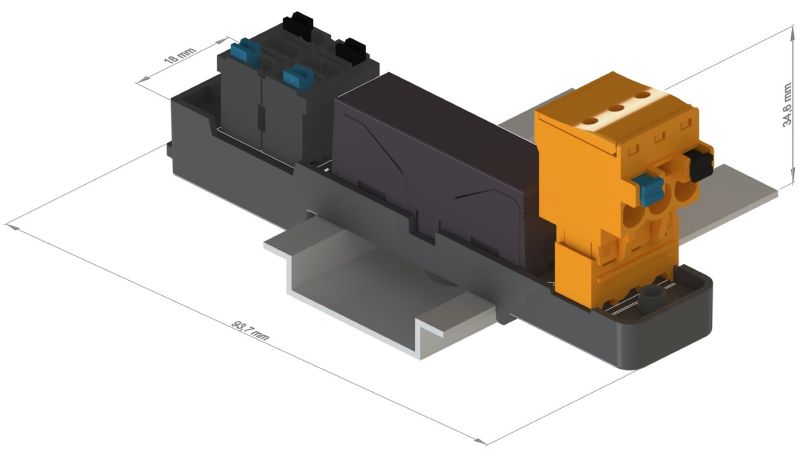

Introducing the RS VERT SUPPLY LSF-SMT_F-6A, a reliable component crafted to meet RoHS compliance With compact dimensions of 237 mm in depth, 937 mm in height, and 179 mm in width, this device weighs just 232 g, making it easy to integrate into your projects It performs efficiently within a temperature range of -40 to 70 °C and can handle humidity levels between 0% and 85% without condensation Featuring a variety of connections, including distribution PCB connectors and supply plug-in connectors, this unit operates at a voltage of 230 V and accommodates a maximum current of 6 A, ensuring versatility for your needs.

Features and Benefits:

•IP30 protection degree.

•PUSH IN type of connection.

•Plug-in connection for supply.

•Compliant with RoHS with exemption.

•Rated insulation voltage of 250 V AC.

•Surge voltage category III.

•Pollution severity 2.

•Pulse voltage test rating of 4 kV.

Specifications:
