7789771030 - 3m PVC Pre-assembled Cable with 0.25mm² LiYY Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

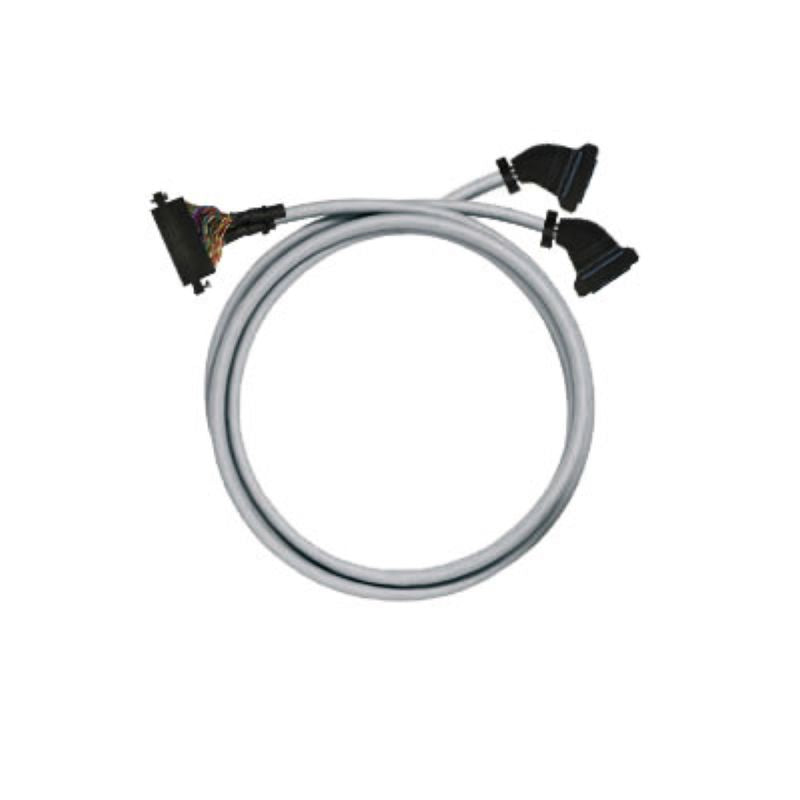

Introducing the PAC-CJ1W-HE20-V9-3M pre-assembled cable, expertly crafted from durable PVC material This cable sports a LiYY design with a cross-sectional area of 025 mm², providing excellent performance in transmitting digital signals Measuring 3 meters in length, it features an outer diameter of 86 mm One end is fitted with a FUJITSU FCN363J040 40P connector, while the other end comes with a HE10 20P interface connector, ensuring versatility for your connectivity needs.

Features and Benefits:

•Compliant with RoHS regulations.

•Temperature range for operation is -10 to 50 °C and for storage, it is -10 to 60 °C.

•Minimum of 20 poles for the connector.

•Capacity of wire and shield is 300 pF/m.

•High voltage test capacity at 1 KV for 1 second.

•Maximum permissible current strength is 1 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Maximum total current is 3 A.

•Suitable for applications requiring digital signal transmission.

Specifications:
