7789771010 - 1m LiYY Cable with FUJITSU 40P & HE10 20P Connectors

7789771010 - 1m LiYY Cable with FUJITSU 40P & HE10 20P Connectors

SKU: 7789771010 Download PDF

Variant:
  • 7789771010 - 1m LiYY Cable with FUJITSU 40P & HE10 20P Connectors
Now $87.35
BEFORE   $0.00 Now $87.35
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

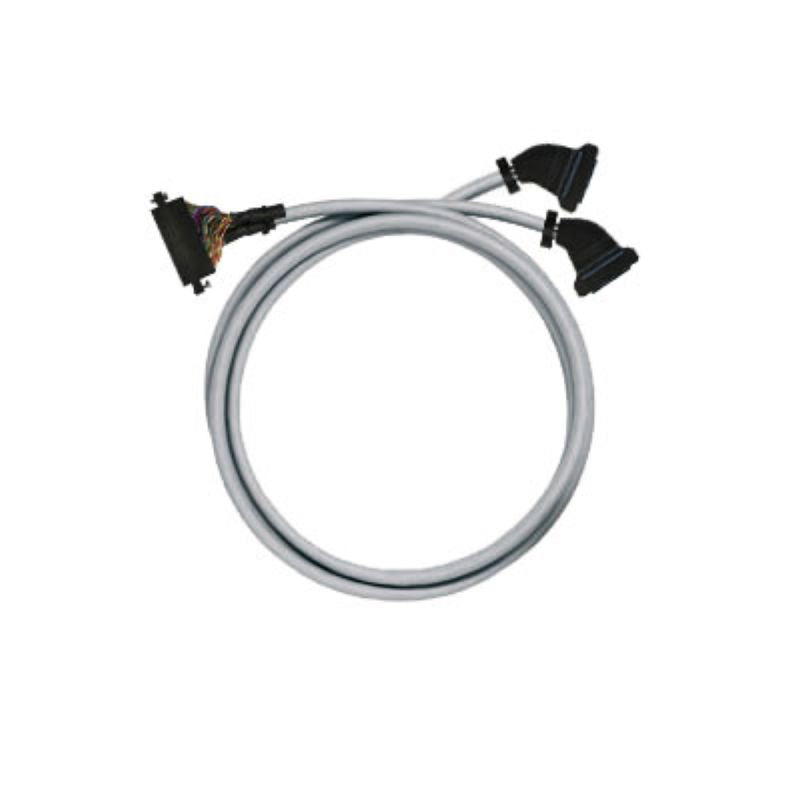

Introducing this pre-assembled PAC cable that guarantees reliability in digital signal transmission Crafted from LiYY material, it boasts a cross-sectional area of 025 mm² and measures 1 meter in length On one end, it features a FUJITSU FCN363J040 40P connector, while the other end is equipped with an HE10 20P interface connector With an outer diameter of about 86 ± 1 mm, this cable is perfect for a variety of applications requiring efficient digital signal connections.

Features and Benefits:

    •Compliant with RoHS standards.

    •No SVHC above 0.1 wt%.

    •Allows for a maximum permissible current strength of 1 A per path.

    •Total current rating up to 3 A.

    •Excellent electrical insulation with a resistance of less than or equal to 80 mΩ/m.

Specifications:

 Cable Cable LiYY
 Cable length 1 m
 Number of poles, min. 20-pole
 Outer diameter 8.6 ± 1 mm
 Wire cross-section 0.25 mm²
 Capacity wire / shield 300 pF/m
 Capacity wire / wires 300 pF/m
 High voltage test 1 KV/1s
 Rated voltage ≤ 60 Vdc ≤ 25 Vac
 Environmental Compliance RoHS Compliance Status: Compliant
 Storage temperature -10...60 °C
 Operating temperature -10...50 °C
 ETIM classification {'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237'}
 ECLASS classification {'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
