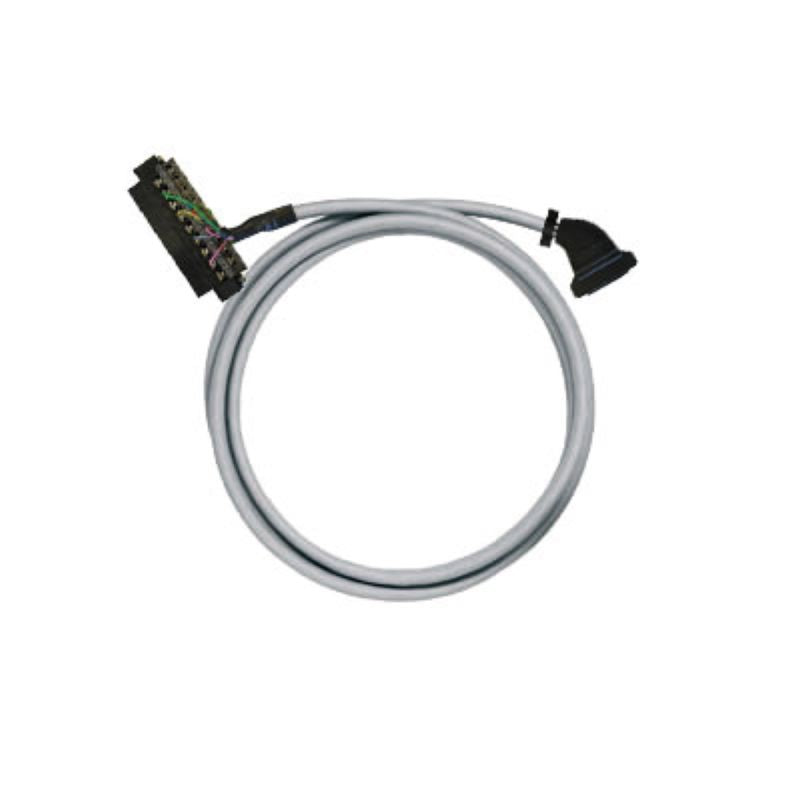

7789770035 - 3.5m LiYY Cable, 0.25mm², 8.6mm Diameter, Dual Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this pre-assembled LiYY cable, featuring a wire cross-section of 025 mm² and an impressive length of 35 meters With a cable diameter of 86 ± 1 mm, it’s designed for ease of use One end is equipped with a ROCKWELL COMPACT LOGIX 1769-RTBN 18P connector, while the other features an HE10 20P flat cable connector, making it ideal for digital signal transmission Perfect for a variety of applications, this cable ensures reliable connectivity.

Features and Benefits:

•Compliance with RoHS and REACH standards.

•Net weight of 437 grams.

•Operating temperature range from -10 to 50 °C.

•Storage temperature range from -10 to 60 °C.

•Capacity wire/shield and wire/wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Permissible maximum current strength of 1 A per path.

•Rated voltage up to 60 Vdc and 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•Total current rating of 3 A.

•Digital signal transmission.

Specifications:
