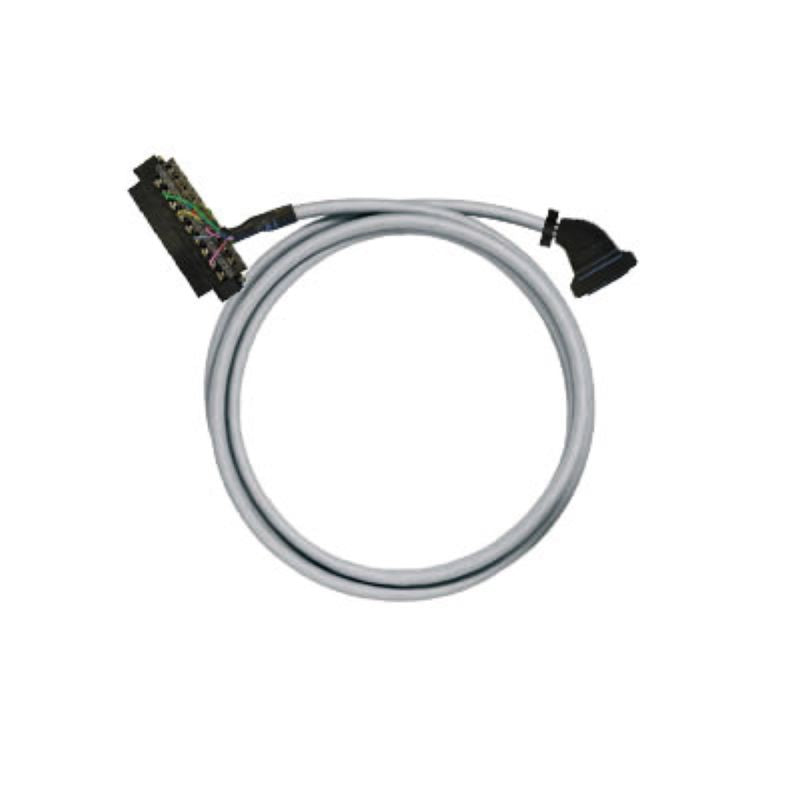

7789769100 - 10m PVC Digital Signal Cable, 0.25 mm², RoHS Compliant

SKU: SKU: 7789769100 Download PDF

Variant:

7789769100 - 10m PVC Digital Signal Cable, 0.25 mm², RoHS Compliant

Now $223.83

~~BEFORE $0.00~~ Now $223.83

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-CMLX-HE20-V5-10M pre-assembled cable, a robust solution for efficient digital signal transmission This cable boasts a wire cross-section of 025 mm² and extends to an impressive length of 10 meters Crafted from high-quality PVC, it features an outer diameter of 86 ± 1 mm, ensuring reliable performance Compliant with RoHS standards with a noted exemption, it operates effectively in temperatures ranging from -10 to 50 °C, while remaining safely storable between -10 and 60 °C.

Perfect for various applications requiring dependable signal conveyance.

Features and Benefits:

•Compliant with RoHS with exemption.

•Suitable for digital signals.

•Temperature range of -10 to 50 °C for operation.

•Storage temperature range of -10 to 60 °C.

Specifications:

Connector PLC side	ROCKWELL COMPACT LOGIX 1769-RTBN 18P
Interface connector	FLAT CABLE CONECTOR HE10 20P
Number of poles, min.	20-pole
Electrical Data	{'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'High voltage test': '1 KV/1s', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '≤ 80 mΩ/m', 'Total current, max.': '3 A'}
General Data	{'Basic material': 'PVC', 'Cable': 'Cable LiYY', 'Cable length': '10 m', 'Wire cross-section': '0.25 mm²'}
Temperatures	{'Storage temperature': '-10...60 °C', 'Operating temperature': '-10...50 °C'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
