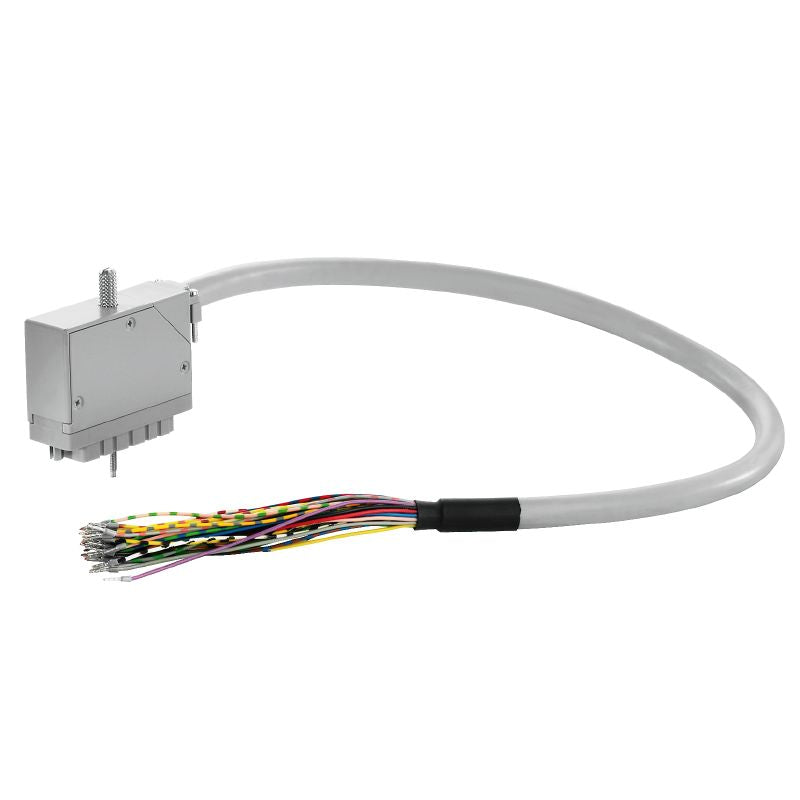

7789763050 - 5m PVC Cable with 38-Pole Connector for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-ELCO38-F38-F-5M pre-assembled cable, expertly crafted from PVC for optimal digital signal transmission Measuring 5 meters in length with a wire cross-section of 025 mm², it is equipped with a 38-pole connector at one end, ideal for use with H025/10 ferrules This cable is engineered to function reliably in temperatures ranging from -10°C to +50°C, and it can be safely stored within a temperature range of -10°C to +60°C, ensuring versatility and performance for various applications.

Features and Benefits:

•Compliant with RoHS regulations.

•No SVHC present above 0.1 wt%.

•Outer diameter of 12.4 ± 1 mm.

•Can handle a maximum current strength of 1 A per path.

•Maximum total current of 3 A.

•Suitable for digital signal applications.
