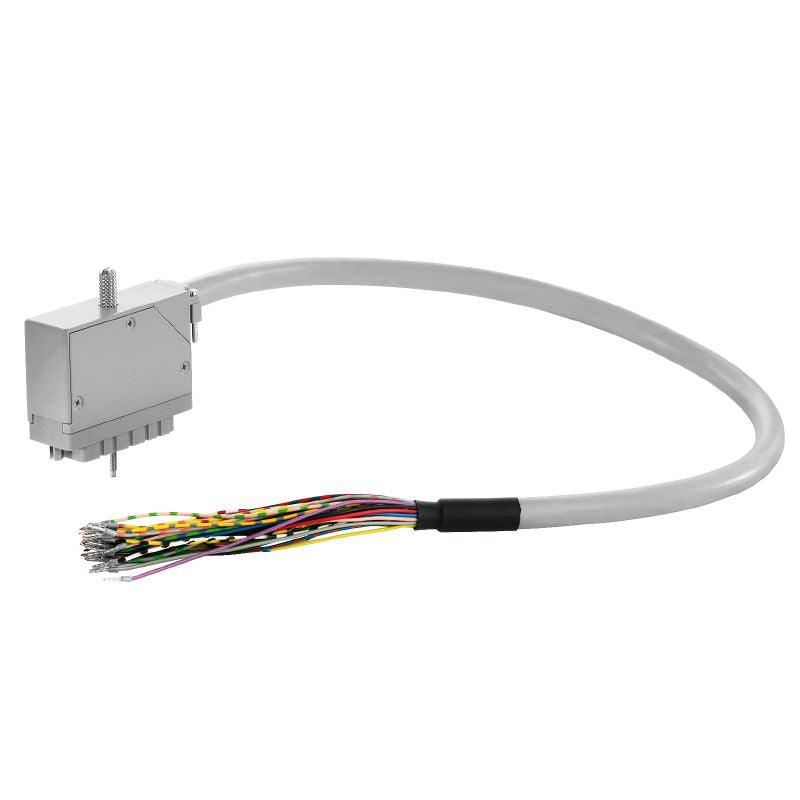

7789763040 - 4m LiYCY Digital Signal Cable with Female ELCO Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-ELCO38-F38-F-4M, a meticulously crafted pre-assembled cable ideal for digital signal transmission This reliable cable features a LiYCY construction with a cross-sectional area of 025 mm² and measures a convenient 4 meters in length One end is equipped with a female ELCO connector, specifically designed for 38-pole connections The cable's outer diameter is approximately 124 mm, with a tolerance of ±1 mm.

It operates at a voltage of up to 250 V and can safely handle a maximum current of 1 A, making it a functional choice for your connectivity needs.

Features and Benefits:

•Compliant with RoHS regulations.

•Storage temperature range from -10 to 60 °C.

•Operating temperature range from -10 to 50 °C.

•High voltage test rated at 1 KV for 1 second.

•Low resistance of ≤ 80 mΩ/m.

•suitable for digital signal transmission.

Specifications:
