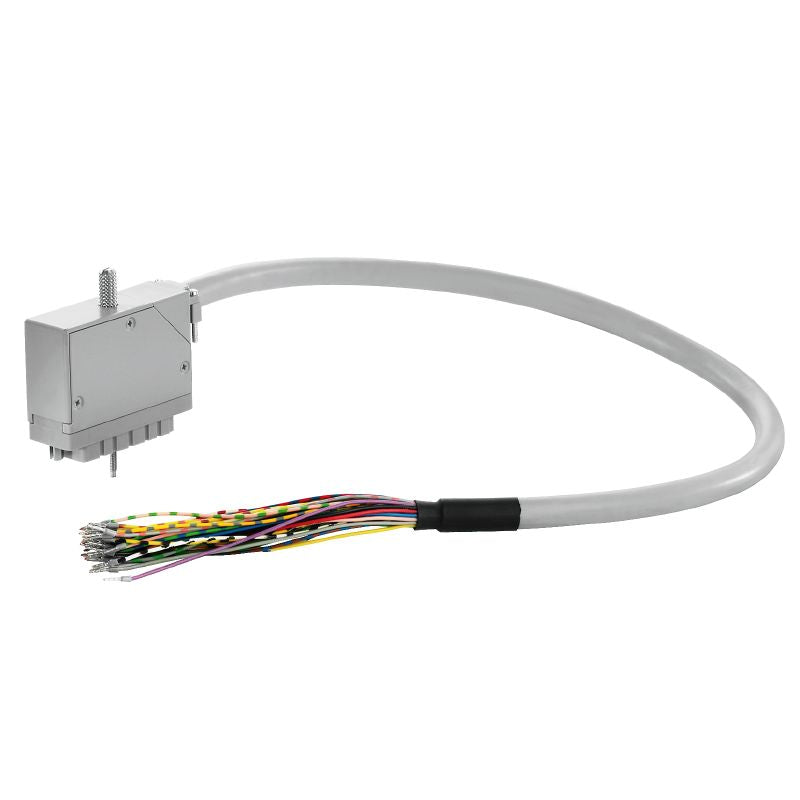

7789762020 - 2m PVC LiYCY Cable with 38-Pole Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-ELCO38-F38-F38-2M pre-assembled cable, expertly crafted from PVC material This 2-meter long cable features a LiYCY type with a wire cross-section of 025 mm², making it suitable for digital signal applications It is equipped with a 38-pole connector on both ends—ideal for connecting to PLCs and interfaces With a maximum current strength of 1A and operating effectively at a voltage of 250V, this cable is both versatile and reliable.

Plus, it meets RoHS compliance standards, ensuring it contains no SVHC above 01 wt%.

Features and Benefits:

•Net weight of 734g.

•Outer diameter of 12.4 ± 1 mm.

•Storage temperature range of -10 to 60 °C.

•Operating temperature range of -10 to 50 °C.

•Capacity wire/shield of 300 pF/m.

•High voltage test rating of 1 KV/1s.

•Resistance of ≤ 80 mΩ/m.

•Suitable for digital signals.

Specifications:
