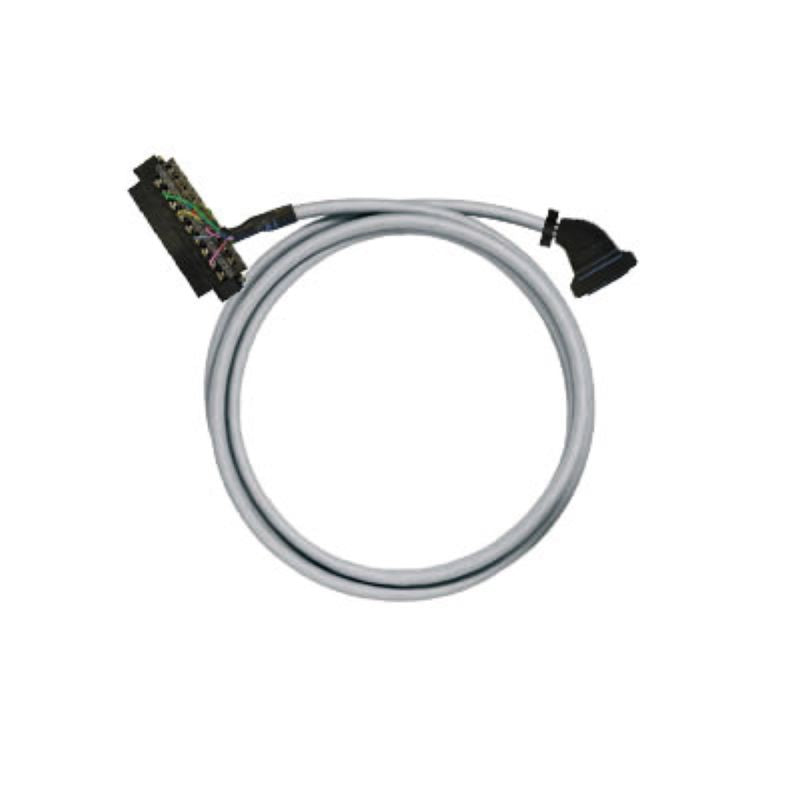

7789697020 - 2m PVC Cable LiYY for ROCKWELL & HE10 Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our pre-assembled PAC cable, featuring the LiYY variant with a conductor size of 025 mm² and extending to a length of 2 meters This cable is expertly crafted from PVC and is ideal for efficient digital signal transmission It is equipped with a ROCKWELL COMPACT LOGIX 1769-RTBN 18P connector on one end, and on the opposite side, you’ll find a FLAT CABLE CONNECTOR HE10 20P Engineered to operate in temperatures from -10 to 50 °C, it can also be safely stored in conditions ranging from -10 to 60 °C, making it a reliable choice for versatile applications.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Outer diameter is 8.6 ± 1 mm.

•Total current capacity is a maximum of 3 A.

•Permissible current strength per path is 1 A.

•High voltage test rating of 1 KV for 1 second.

•Containment of lead as an SVHC.

•Suitable for digital signal transmission.

Specifications:
