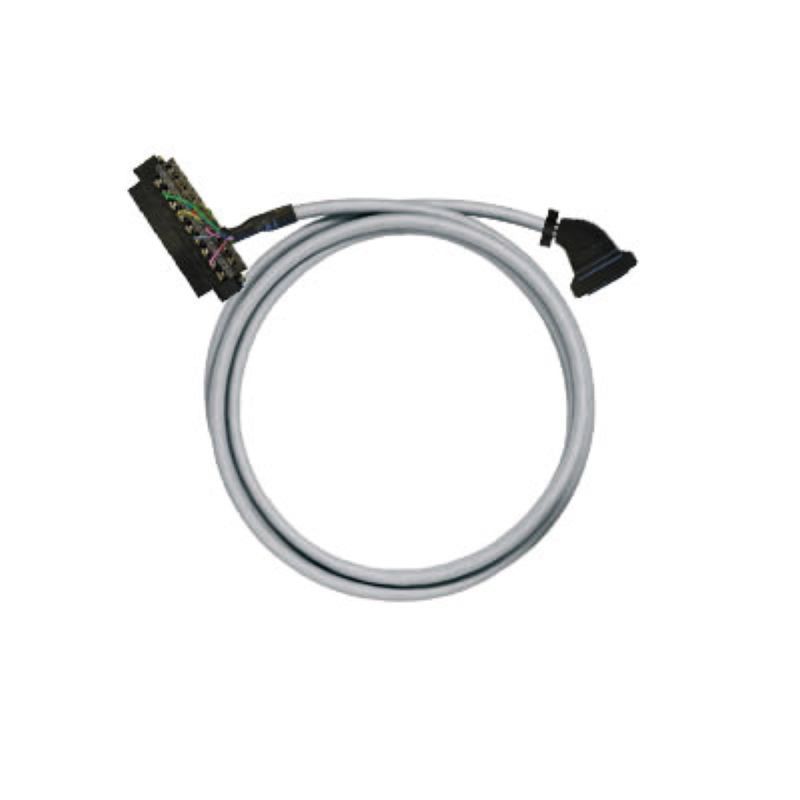

7789695025 - 2.5m LiYY PAC Cable with ROCKWELL Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our pre-assembled PAC cable, expertly crafted for optimal performance Measuring 25 meters in length, this LiYY type cable features a wire cross-section of 025 mm² It's outfitted with specialized connectors—specifically, the ROCKWELL COMPACT LOGIX 1769-RTBN 18P at one end and a 20-pole flat cable connector HE10 at the other Designed to handle digital signals, this cable is made from robust PVC material, ensuring reliable functionality for your needs.

Features and Benefits:

•Net weight of 335 g.

•Outer diameter of 8.6 ± 1 mm.

•Capacity wire / shield of 300 pF/m.

•Capacity wire / wires of 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Permissible current strength per path, maximum of 1 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•Total current, maximum of 3 A.

•Digital signal transmission.

Specifications:
