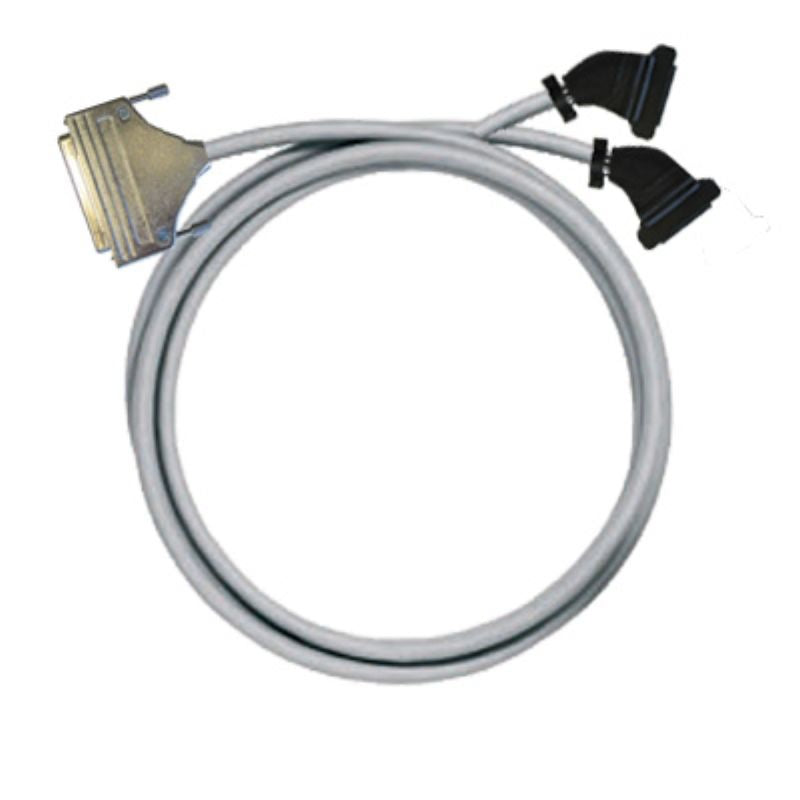

7789682030 - 3m PVC Cable with SUB-D 37P & HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a pre-assembled PAC-MIMQ-SD37-V0-3M cable, crafted from durable PVC material This 3-meter long cable is specifically designed for transmitting analogue signals One end is equipped with a SUB-D FEMALE 37P connector, while the opposite end features two flat cable connectors (HE10 20P), each boasting a minimum of 20 poles With an outer diameter of 86 ± 1 mm, this cable meets RoHS standards and adheres to various environmental compliance regulations, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Net weight of 736 g.

•Compliant with RoHS.

•Storage temperature range: -10 to 60 °C.

•Operating temperature range: -10 to 50 °C.

•Permissible current strength per path: 1 A.

•Rated voltage: ≤ 60 V DC ≤ 25 V AC.

•Total current capacity is 3 A.

•Electrical resistance is ≤ 80 mΩ/m.

•Suitable for analogue signal transmission.

Specifications:
