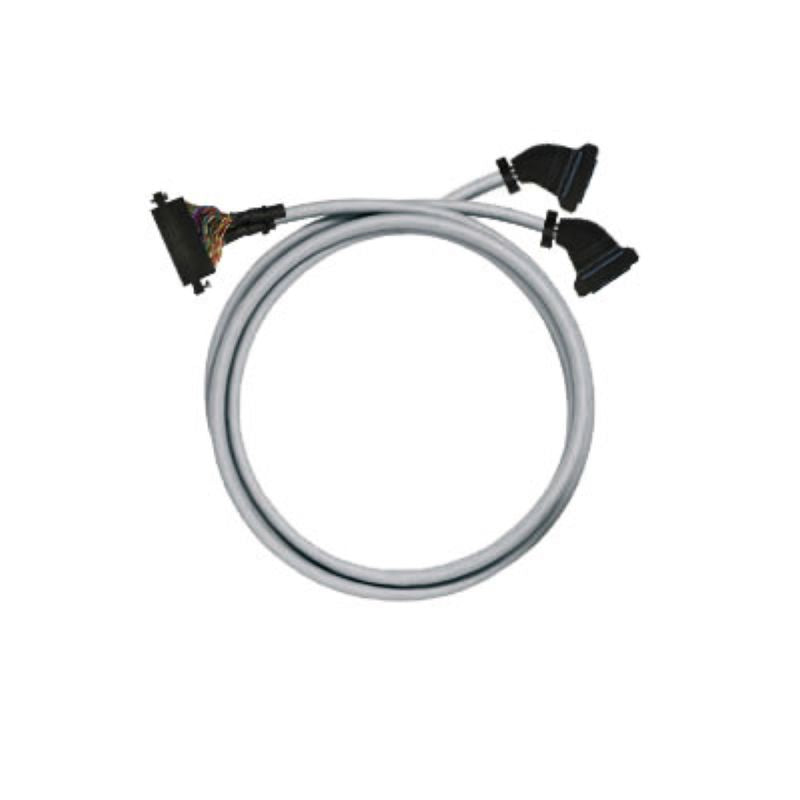

7789681025 - 0.25mm² PAC LiYY Cable, 8.6mm x 2.5m, RoHS Compliant

SKU: SKU: 7789681025 Download PDF

Variant:

7789681025 - 0.25mm² PAC LiYY Cable, 8.6mm x 2.5m, RoHS Compliant

Now $171.33

~~BEFORE $0.00~~ Now $171.33

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the convenience of our pre-assembled PAC cable, expertly crafted with LiYY material With a wire cross-section of 025 mm², this cable extends to a generous length of 25 meters and features an outer diameter of approximately 86 mm It operates optimally in temperatures ranging from -10 to 50 °C, ensuring reliable performance in various conditions For storage purposes, it can withstand temperatures from -10 to 60 °C.

Additionally, this product meets RoHS standards and is free from any SVHC exceeding 01 wt%, making it an eco-friendly choice for your wiring needs.

Features and Benefits:

•Complies with RoHS.

•Suitable for temperatures from -10 to 50 °C during operation.

•Capable of withstanding storage temperatures between -10 and 60 °C.

•Designed with PVC as a basic material.

•Permissible current strength per path is 1 A.

•Maximum total current is 3 A.

Specifications:

Cable type	Cable LiYY
Cable length	2.5 m
Connector PLC side	FCN CONNECTOR 40P
Interface connector	2X FLAT CABLE CONNECTOR HE10 20P
Wire cross-section	0.25 mm²
Operating temperature	-10...50 °C
Storage temperature	-10...60 °C
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Permissible current strength per path, max	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80mΩ/m
Total current, max	3 A
General ordering data	{'Order No.': '7789681025', 'GTIN (EAN)': '4032248213122'}
ETIM classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237'}
ECLASS classifications	{'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
