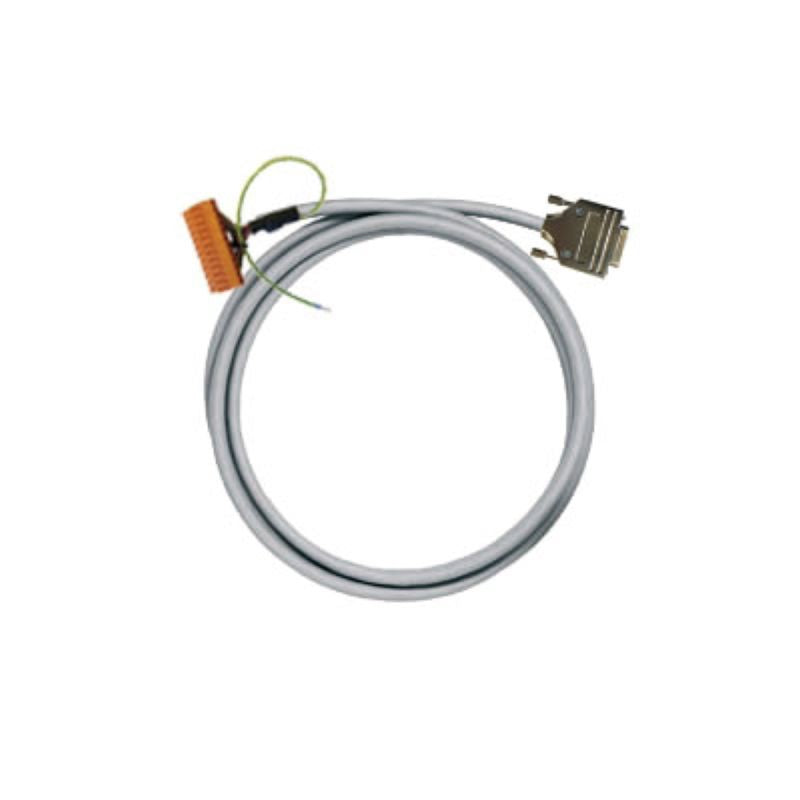

7789679010 - 1m PVC 15-Pole SUB-D Cable for Analogue Signal Transmission

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-SLC5-SD15-V3-1M, a reliable cable designed for smooth analogue signal transmission Crafted from durable PVC, this cable spans a length of 1 meter and comes equipped with a male SUB-D connector featuring 15 pins With a wire cross-section of 025 mm² and an approximate outer diameter of 87 mm, it’s built for efficiency Its operational temperature range is ideal for various environments, functioning between -10 to 50 °C, while storage is safe from -10 to 60 °C.

Perfect for your connectivity needs, this cable combines performance with reliability.

Features and Benefits:

•RoHS Compliant.

•Suitable for analogue signals.

•Capacitance wire/shield is 300 pF/m.

•High voltage test rated at 1 KV for 1 second.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage is up to 60 Vdc and 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total current maximum is 3 A.

Specifications:
