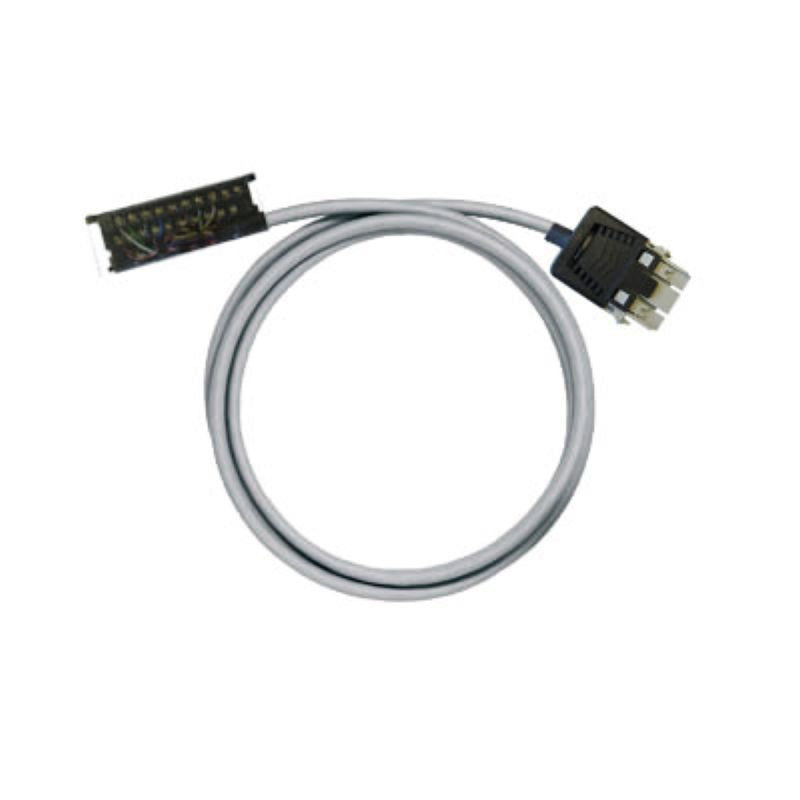

7789666030 - 3m PAC Digital Cable with 0.25mm² Wire and Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-RX3I-RV24-V0-3M, a pre-assembled cable tailored for exceptional performance with digital signals With a wire cross-section of 025 mm² and a length of 3 meters, this cable is designed for versatility across various applications It comes equipped with connectors, including a GEFANUC IC693ACC311 featuring 20 poles, along with a WEIDMUELLER RSV 24P male interface Its outer diameter of about 9.

2 mm ensures a compact and secure fit, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Meets RoHS compliance with exemptions.

•Contains PVC as the basic material.

•Suitable for digital signals.

•Capacities of 300 pF/m for both wire/shield and wire/wires.

•High voltage test capability up to 1 KV for 1 second.

•Max permissible current strength of 1 A per path.

Specifications:
