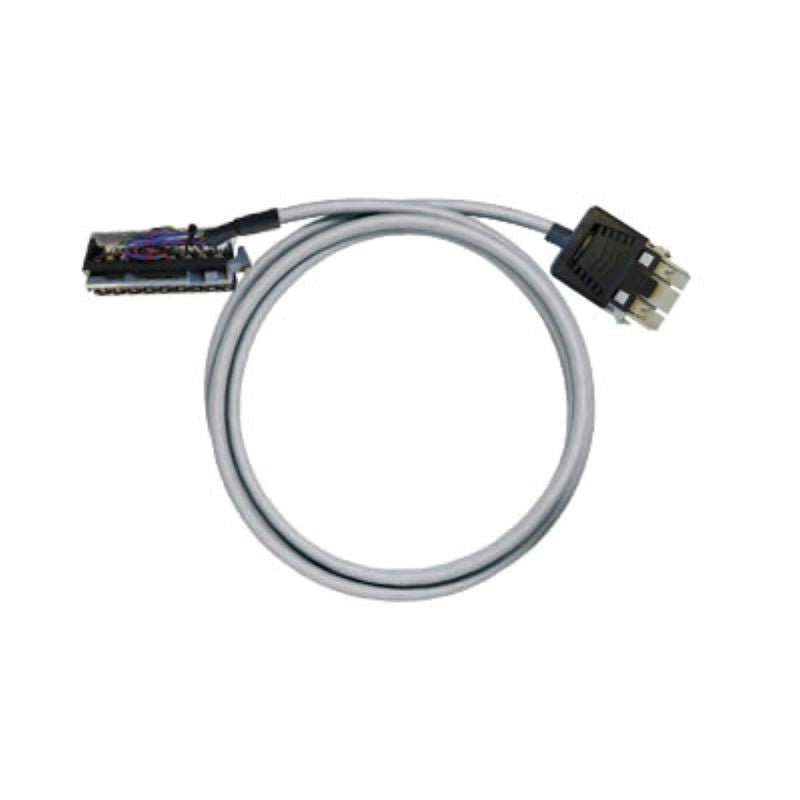

7789664020 - 2m LiYY Pre-Assembled Cable with OMRON and WEIDMUELLER Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-CJ1W-RV24-V1-2M pre-assembled cable, expertly designed for digital signal transmission This high-quality cable features a LiYY construction with a wire cross-section of 025 mm², ensuring optimum performance Equipped with connectors at both ends, it includes an OMRON CJ-OD507-18P and a WEIDMUELLER RSV 24P male connector for seamless connectivity With a generous length of 2 meters and an approximate outer diameter of 9.

2 mm, this cable is ideal for various applications.

Features and Benefits:

•Net weight of 321 g.

•Storage temperature range: -10...60 °C.

•Operating temperature range: -10...50 °C.

•RoHS compliant with no SVHC above 0.1 wt%.

•Permissible current strength per path is 1 A.

•Rated voltage up to 250 Vdc and 250 Vac.

•Maximum total current capacity is 3 A.

•Suitable for digital signals.

Specifications:
