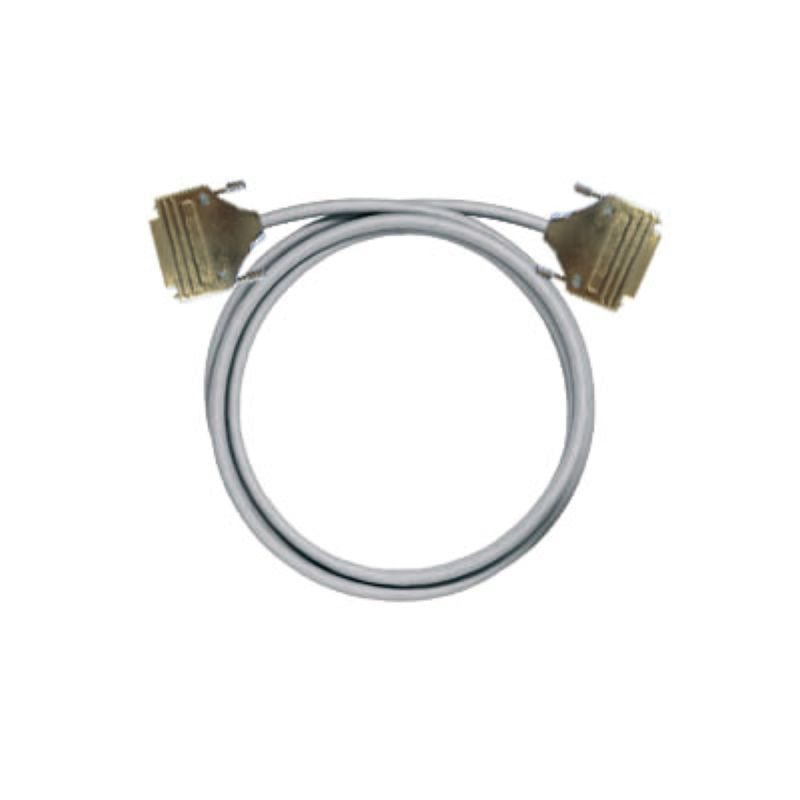

7789657020 - 2m LiYCY Cable for Analog Signal, 0.25 mm², 25-Pin

SKU: SKU: 7789657020 Download PDF

Variant:

7789657020 - 2m LiYCY Cable for Analog Signal, 0.25 mm², 25-Pin

Now $117.39

~~BEFORE $0.00~~ Now $117.39

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-ABS8-SD25-V0-2M pre-assembled cable, expertly crafted for optimal performance in analogue signal transmission This durable LiYCY cable comes with a cross-section of 025 mm² and spans a generous length of 2 meters Equipped with a 25-pin female SUB-D connector, it facilitates reliable connections Weighing in at 581 grams, this cable is compliant with RoHS standards and is free from any SVHC substances above the regulated threshold.

Operating efficiently in temperatures ranging from -10 to 50 °C and with a storage capability of -10 to 60 °C, it’s designed to meet your connectivity needs with ease.

Features and Benefits:

•Compliant with RoHS regulations.

•No SVHC above 0.1 wt%.

•Designed for analogue signal transmission.

•Net weight of 581 grams.

•Cable length of 2 meters.

Specifications:

Basic material	PVC
Cable	Cable LiYCY
Connector PLC side	SUB-D FEMALE 25P
Interface connector	SUB-D FEMALE 25P
Number of poles, min.	25-pole
Outer diameter	10.15 ± 1 mm
Wire cross-section	0.25 mm²
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
High voltage test	1 KV/1s
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max.	3 A
Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
ETIM classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
