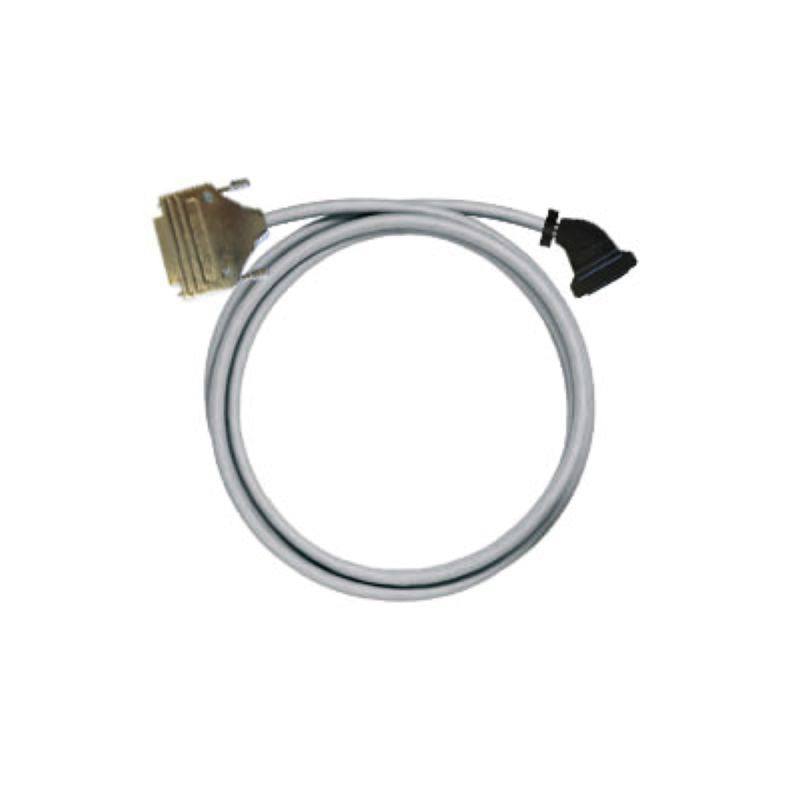

7789643010 - 1m PVC Pre-assembled Cable with SUB-D 25P Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-ABS8-HE20-V1-1M pre-assembled cable, crafted from durable PVC material and featuring a wire cross-section of 025 mm² This cable is specifically engineered for digital signal transmission, equipped with a SUB-D FEMALE 25P connector on one end and a 20-pin FLAT CABLE CONNECTOR HE10 on the opposite side It meets RoHS compliance standards and operates efficiently within a temperature range of -10 to 50 °C, while being suitable for storage between -10 to 60 °C.

Its dimensions include an outer diameter measuring 86 ± 1 mm, making it a reliable choice for your connectivity needs.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for digital signals.

•Net weight of cable is 211.3 g.

•Permissible current strength per path is max. 1 A.

•Rated voltage is ≤ 60 Vdc, ≤ 25 Vac.

Specifications:
