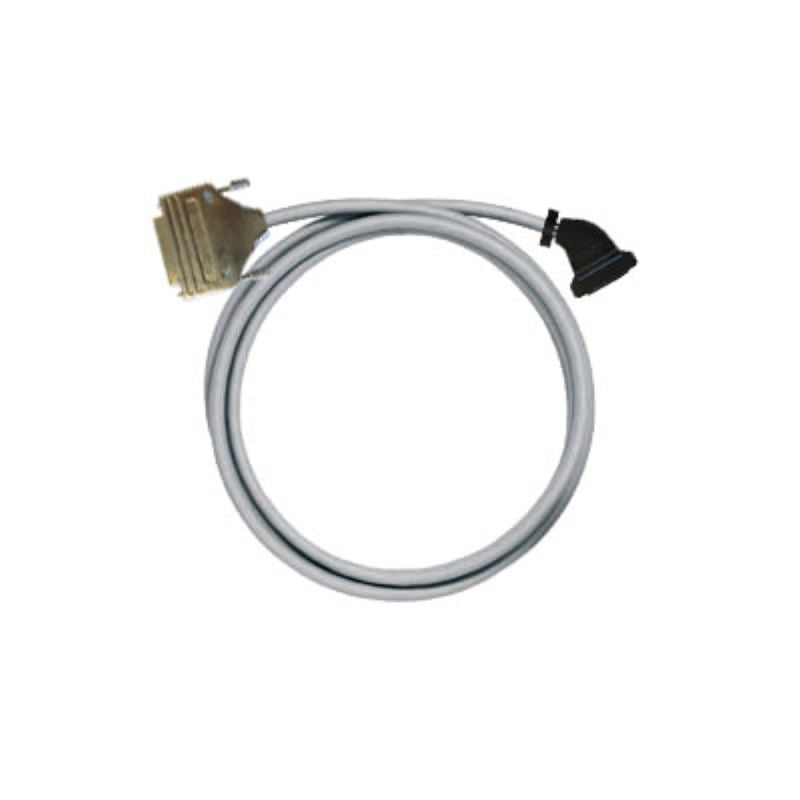

7789641050 - 5m Pre-assembled Cable with SUB-D 25P & HE10 20P Connectors

SKU: SKU: 7789641050 Download PDF

Select a Variant:

7789641050 - 5m Pre-assembled Cable with SUB-D 25P & HE10 20P Connectors

SET THE QTY:

Now $92.20 Web pricing policy

~~BEFORE $0.00~~ Now $92.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

This 5-meter pre-assembled PAC cable is engineered for efficient digital signal transmission Featuring a 025 mm² wire cross-section, it connects seamlessly with a SUB-D FEMALE 25P connector on one end and a FLAT CABLE CONNECTOR HE10 20P on the other Designed to meet RoHS standards, it ensures safe and environmentally friendly use.

Features and Benefits:

•Suitable for digital signals.

•Compliant with RoHS and REACH regulations.

•Net weight of 604 g.

•Storage temperature range: -10 to 60 °C.

•Operating temperature range: -10 to 50 °C.

•Permissible current strength per path of max. 1 A.

•Total current capacity of max. 3 A.

•High voltage test capacity of 1 KV for 1 second.

Specifications:

Basic material	PVC
Cable	Cable LiYY
Cable length	5 m
Number of poles, min.	20-pole
Outer diameter	8.6 ± 1 mm
Wire cross-section	0.25 mm²
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
