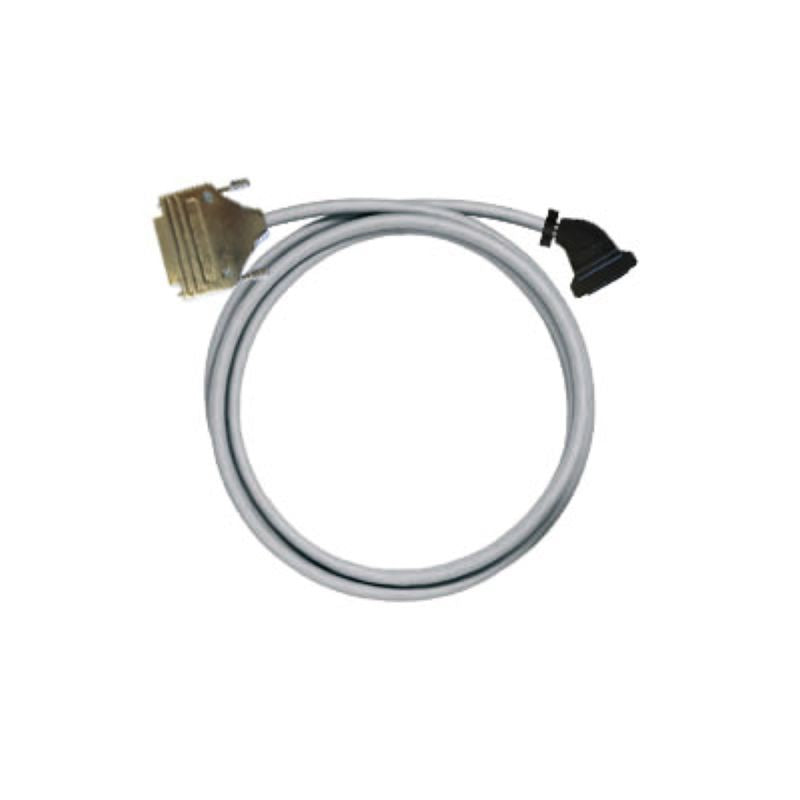

7789641010 - 1m LiYY Pre-assembled Cable with SUB-D & HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the pre-assembled PAC cable, designed with a LiYY configuration With a cross-sectional wire size of 025 mm² and a length of 1 meter, this cable is perfect for transmitting digital signals It features a SUB-D FEMALE 25P connector on one end and a HE10 20P flat cable connector on the opposing side The outer diameter measures approximately 86 mm, plus or minus 1 mm, combining flexibility and durability for all your connectivity needs.

Features and Benefits:

•Compliant with RoHS standards.

•Operating temperature range from -10 to 50 °C.

•Storage temperature range from -10 to 60 °C.

•High voltage test rating of 1 KV for 1 second.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Maximum permissible current strength per path is 1 A.

•Maximum total current of 3 A.

•Low resistance of ≤ 80 mΩ per meter.

•Suitable for digital signal transmission.

Specifications:
