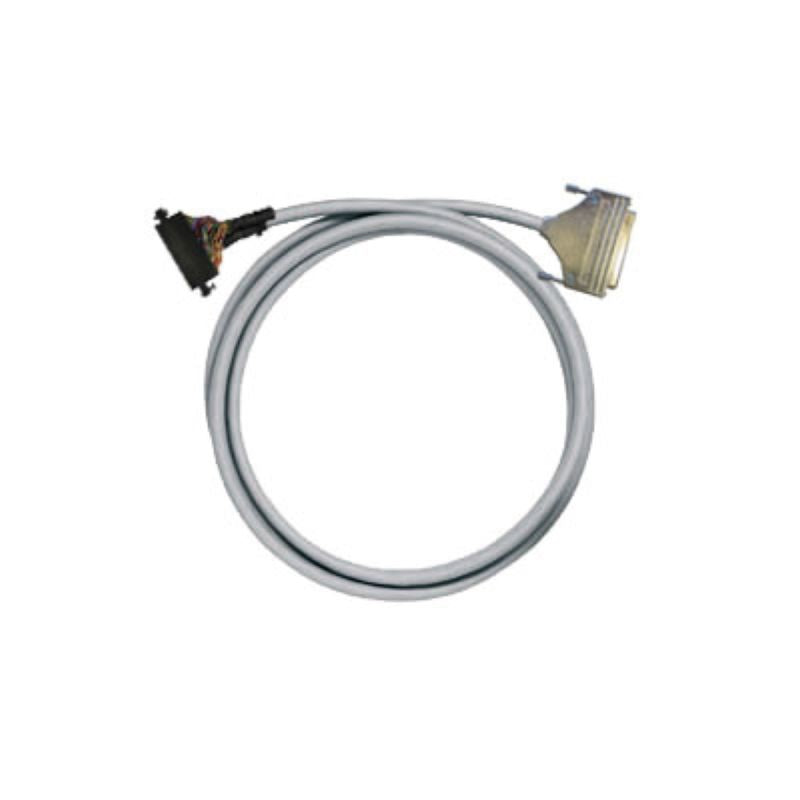

7789639010 - 1m PVC Pre-assembled Cable with SUB-D 37P Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-M340-SD37-V0-1M pre-assembled cable, expertly crafted from durable PVC material This versatile cable features a LiYCY configuration with a wire cross-section measuring 025 mm² It comes equipped with a SUB-D FEMALE 37P interface connector and a FUJITSU FCN363J040 40P connector on the PLC side, making it ideal for analog signal applications With a generous length of 1 meter, this cable offers the perfect combination of functionality and reliability for your connectivity needs.

Features and Benefits:

•Compliant with RoHS standards.

•No SVHC present above 0.1 wt%.

•Outer diameter of 12.2 ± 1 mm.

•Permissible current strength per path is up to 1 A.

•Rated voltage capabilities of ≤ 60 Vdc and ≤ 25 Vac.

•High voltage test rating of 1 KV for 1 second.

•Total current limit is 3 A.

•Used for transmitting analogue signals.

Specifications:
