7789637020 - 2m PVC Cable with 15P Connector for Analogue Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

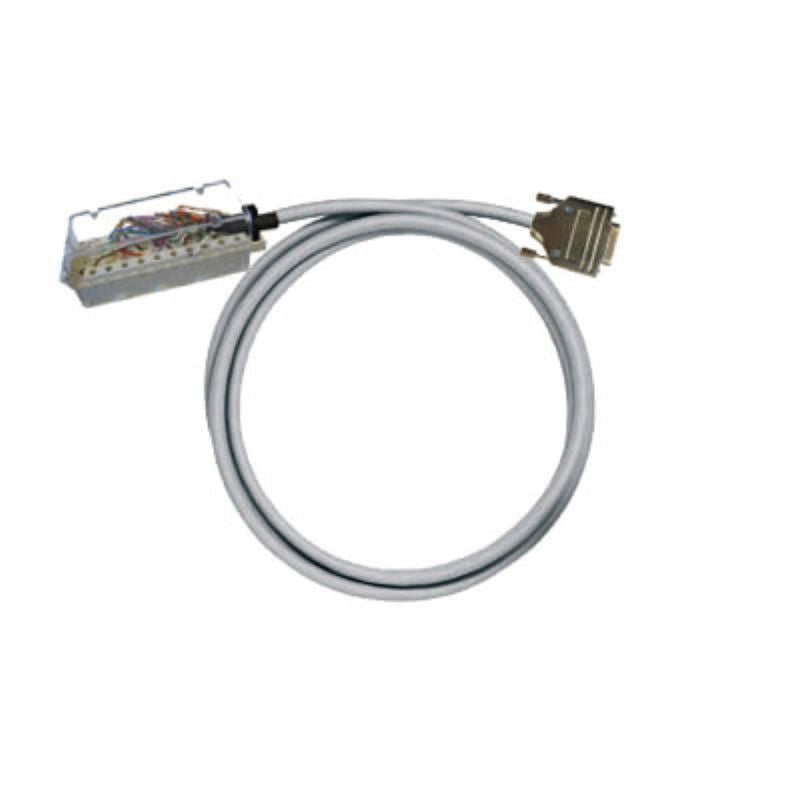

Introducing the PAC-M340-SD15-V0-2M, a reliable pre-assembled cable specifically crafted for analogue signal transmission This 2-meter cable boasts a robust PVC construction, ensuring durability and flexibility One end is equipped with a SCHNEIDER BMX FTB 2000 20P connector, while the other features a SUB-D FEMALE 15P interface connector, facilitating easy connectivity With an outer diameter of 87 mm (± 1 mm) and a wire cross-section of 0.

25 mm², this cable is engineered for optimal performance It is compliant with RoHS standards, containing no SVHC substances above 01 wt% The PAC-M340-SD15-V0-2M can handle a maximum total current of 3 A and operates efficiently at voltages of up to 60 Vdc and 25 Vac It is designed to function in temperatures ranging from -10 to 50 °C during operation and can be stored safely between -10 and 60 °C This makes it a versatile choice for a variety of applications.

Features and Benefits:

•Pre-assembled for easy installation.

•RoHS compliant.

•Designed for analogue signals.

Specifications:
