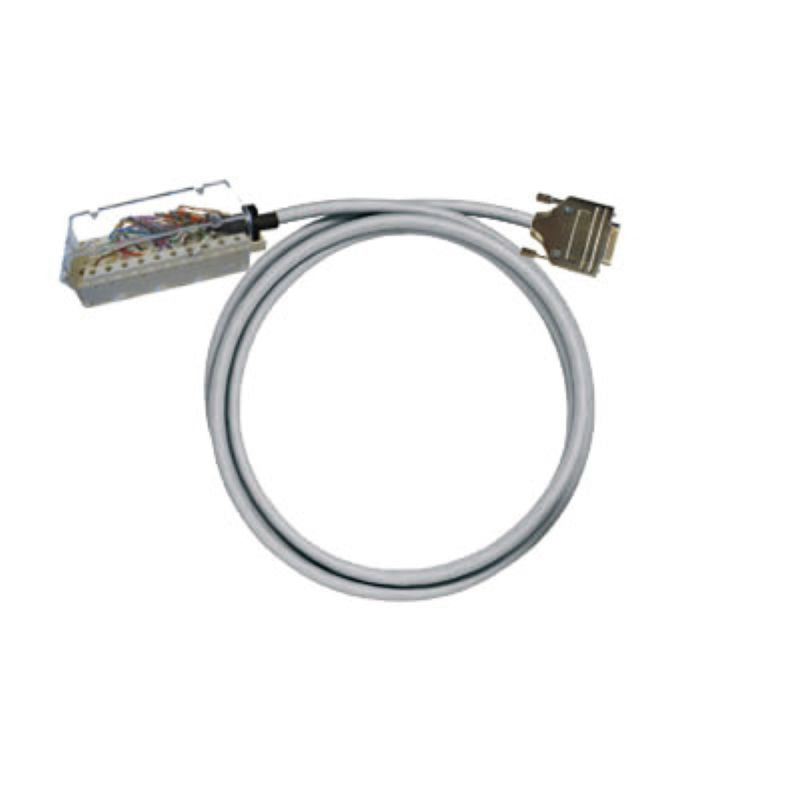

7789637010 - 1m PAC Cable, Ø8.7mm, PVC, 20-Pin SCHNEIDER Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-M340-SD15-V0-1M pre-assembled PAC cable, meticulously designed for efficiency and reliability With an 87 ± 1 mm outer diameter and a 1-meter length, this cable features a wire cross-section of 025 mm², crafted from durable PVC material On one end, you'll find a 20-pin SCHNEIDER BMX FTB 2000 connector, while the other boasts a 15-pin SUB-D FEMALE interface connector This high-performance cable is specifically optimized for transmitting analogue signals, making it an essential component for your projects.

Features and Benefits:

•Compliant with RoHS regulations.

•Resistant to a temperature range of -10 to 60 °C.

•Operating temperature range is -10 to 50 °C.

•Capacity for wire and shield is 300 pF/m.

•Rated for a maximum voltage of 60 Vdc and 25 Vac.

•Total current capacity of 3 A with a maximum current strength of 1 A per path.

•High voltage test capability of 1 KV for 1 second.

•Suitable for analogue signal transmission.

Specifications:
