7789626030 - 3m PAC Cable with 0.25 mm² LiYCY Wire and Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

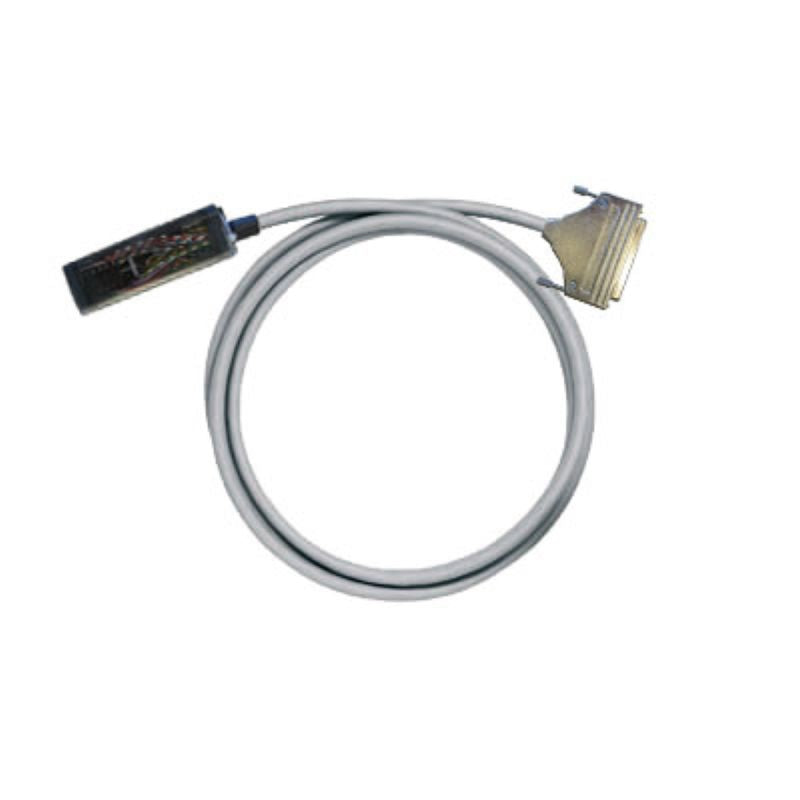

Introducing the pre-assembled PAC cable, model PAC-RX3I-SD37-V2-3M, crafted with 025 mm² LiYCY wiring for optimal connectivity, specifically tailored for analog signal applications This robust cable spans a length of 3 meters, featuring a GEFANUC IC694TBS032 36P connector on one end and a SUB-D Female 37P connector on the opposite side It adheres to RoHS standards, ensuring environmental responsibility with compliance across various exemptions and listings.

Features and Benefits:

•Net weight of 922 g.

•Storage temperature ranging from -10 to 60 °C.

•Operating temperature between -10 and 50 °C.

•Outer diameter of 12.2 ± 1 mm.

•Wire cross-section of 0.25 mm².

•High voltage test capability of 1 KV for 1 second.

•Permissible current strength up to 1 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance less than or equal to 80 mΩ/m.

•Max total current of 3 A.

•Designed for analogue signal transmission.

Specifications:
