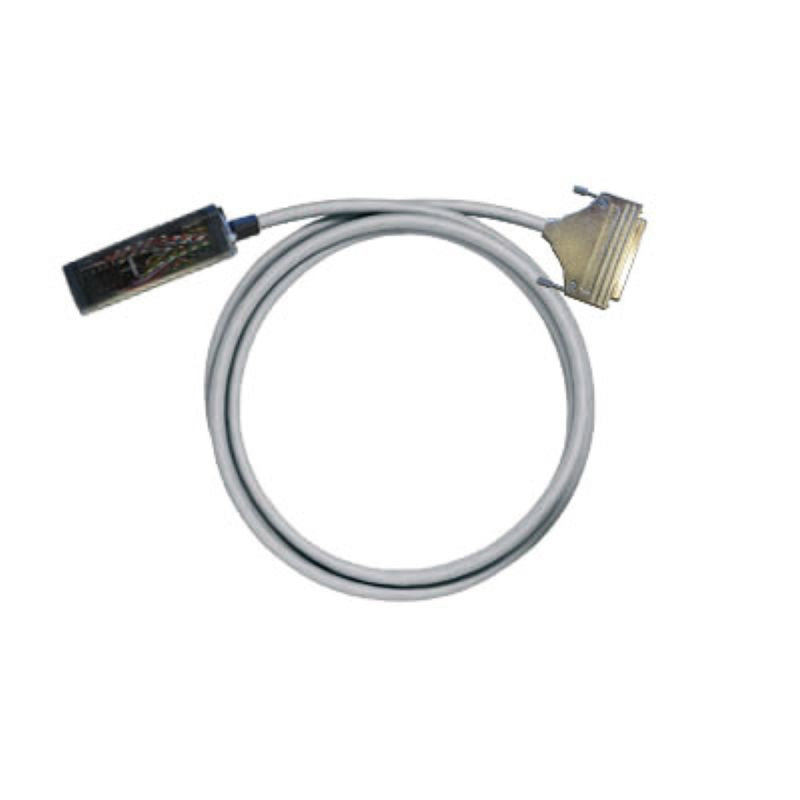

7789626005 - 0.5m PVC Cable with SUB-D 37P Connector for Analogue Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This pre-assembled cable is ideal for specialized applications Boasting a 025 mm² wire cross-section, it is designed for handling analogue signals Constructed from durable PVC material, the cable measures 05 meters in length and includes a PLC-side connector compatible with the GEFANUC IC694TBS032 36P Additionally, it features a SUB-D FEMALE 37P connector with a minimum of 37 poles Its outer diameter is 12.

2 ± 1 mm, ensuring versatility in various environmental conditions, with optimal performance within a temperature range of -10 to 50 °C and a storage range of -10 to 60 °C.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Compatible with high voltage tests of 1 KV for 1 second.

•Permissible current strength per path is a maximum of 1 A.

•Total current capacity stands at a maximum of 3 A.

•Analogue signals.

Specifications:
