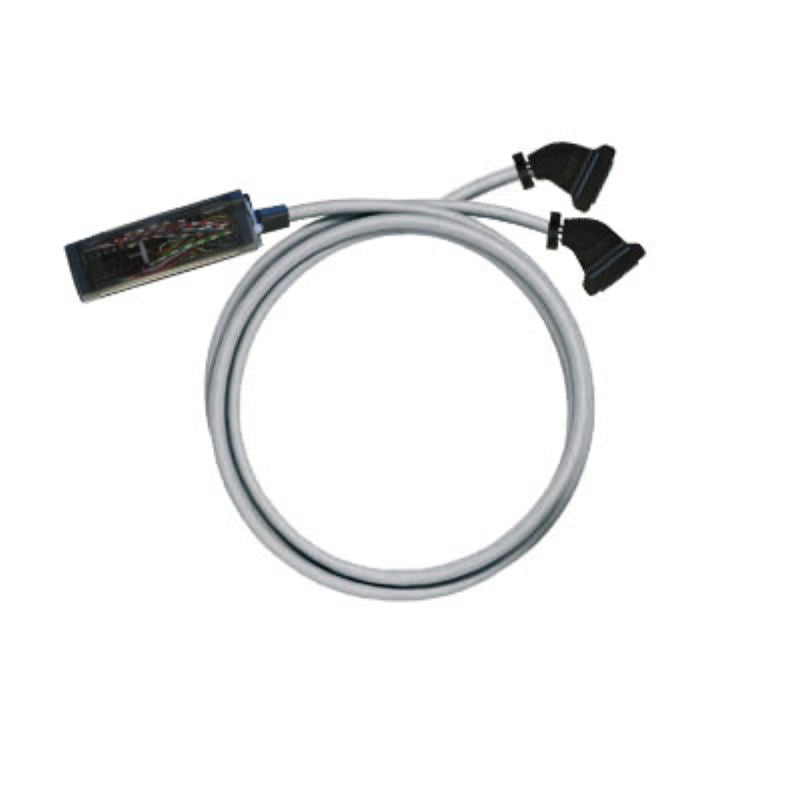

7789619010 - 1m PAC Pre-Assembled Cable, 0.25mm² for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the pre-assembled PAC cable designed for superior performance with a wire cross-section of 025 mm² This cable is certified for RoHS compliance with specific exemptions, making it a reliable choice for transmitting digital signals Built to endure a variety of temperatures, its durable construction is tailored for specialized electronic applications.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Outer diameter of 8.6 ± 1 mm.

•Capacity of wire/shield and wire/wires at 300 pF/m.

•High voltage test withstand of 1 KV for 1 second.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage up to 60 Vdc and 25 Vac.

•Designed for digital signals.
