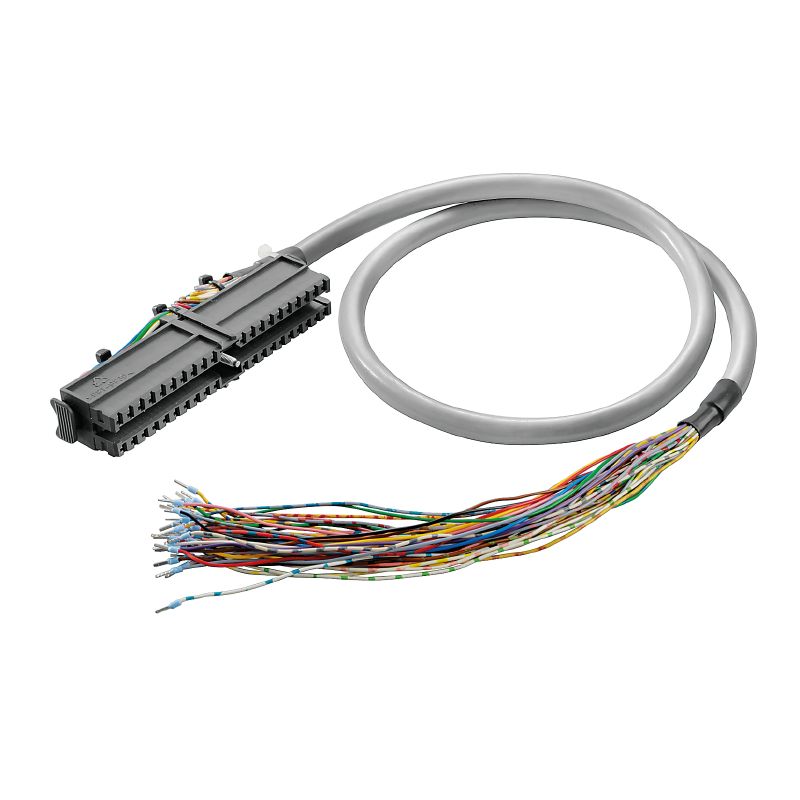

7789608040 - 4m LiYY Pre-assembled Cable with SIEMENS S7300 Connector

SKU: SKU: 7789608040 Download PDF

Select a Variant:

7789608040 - 4m LiYY Pre-assembled Cable with SIEMENS S7300 Connector

SET THE QTY:

Now $206.80 Web pricing policy

~~BEFORE $0.00~~ Now $206.80 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PAC-S300-UNIU-V1-4M, a ready-to-use LiYY cable designed for optimal digital signal transmission This 4-meter long cable boasts a wire cross-section of 025 mm² and is outfitted with a reliable SIEMENS S7300 connector Environmentally conscious consumers will appreciate its compliance with RoHS regulations, ensuring a safer choice for both usage and the planet.

Features and Benefits:

•Net weight of 936 g.

•Operating temperature range of -10 to 50 °C.

•Storage temperature range of -10 to 60 °C.

•Outer diameter of 11.7 ± 1 mm.

•Suitable for digital signals.

Specifications:

Cable Type	PAC, Cable LiYY
Connector PLC Side	SIEMENS S7300 6ES7921-3AH20-1AA0 40P
Interface Connector	H0.25/10 (FERRULES 0.25mm²)
Number of Poles	40-pole
Capacity Wire / Shield	300 pF/m
Capacity Wire / Wires	300 pF/m
High Voltage Test	1 KV/1s
Permissible Current Strength per Path, Max	1 A
Rated Voltage	≤ 250 Vdc ≤ 250 Vac
Resistance	≤ 80 mΩ/m
Total Current, Max	3 A
Environmental Compliance	{'RoHS Compliance Status': 'Compliant', 'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
ETIM Classifications	{'6.0': 'EC000237', '7.0': 'EC000237', '8.0': 'EC000237', '9.0': 'EC000237', '10.0': 'EC000237', '11.0': 'EC000237', '12.0': 'EC000237', '13.0': 'EC000237', '14.0': 'EC000237', '15.0': 'EC000237'}
ECLASS Classifications	{'9.0': '27-24-22-20', '9.1': '27-24-22-20', '10.0': '27-24-22-20', '11.0': '27-24-22-20', '12.0': '27-24-22-20', '13.0': '27-24-22-20', '14.0': '27-24-22-20', '15.0': '27-24-22-20'}

Resources

Reviews
