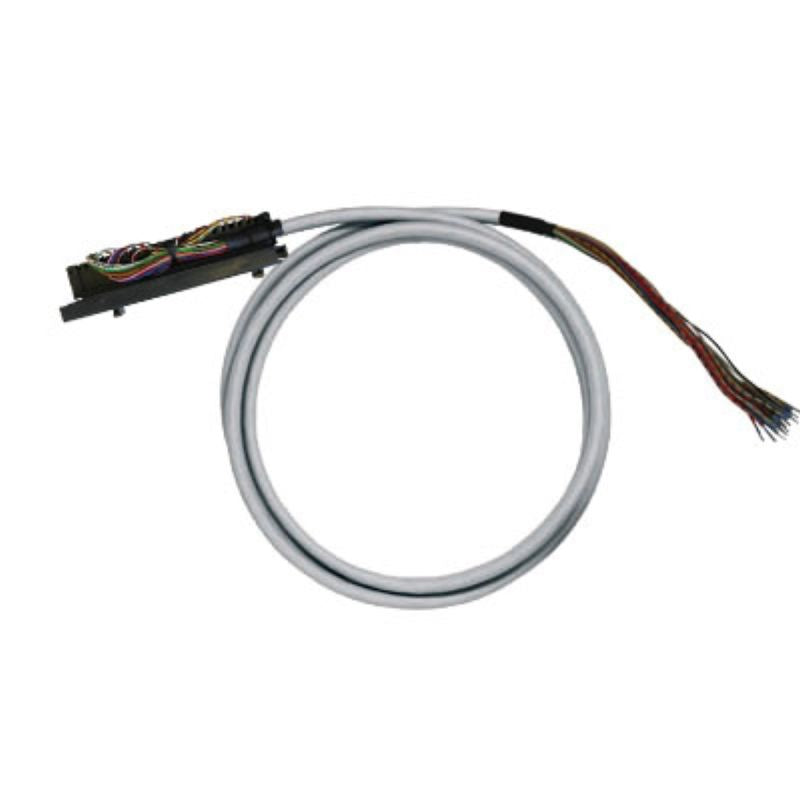

7789607020 - 2m PVC Pre-assembled Cable for SIEMENS S7300 Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-S300-UNIS-V0-2M pre-assembled cable, specifically crafted for analogue signal transmission It boasts a wire cross-section of 025 mm² and stretches a convenient 2 meters in length With an outer diameter of 1015 ± 1 mm, this cable includes a connector that seamlessly fits SIEMENS S7300 systems and is equipped with FERRULES rated at 025mm² Designed to withstand operating temperatures ranging from -10 to 50 °C, it is also safe for storage between -10 and 60 °C.

Made from durable PVC, this cable conforms to RoHS standards for environmental safety.

Features and Benefits:

•Suitable for analogue signals.

•Net weight of 375 g.

•Compliant with RoHS standards.

•High voltage test capability of 1 KV for 1 second.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage up to 250 Vdc and 250 Vac.

•Resistance is at most 80 mΩ/m.

•Total maximum current of 3 A.

Specifications:
