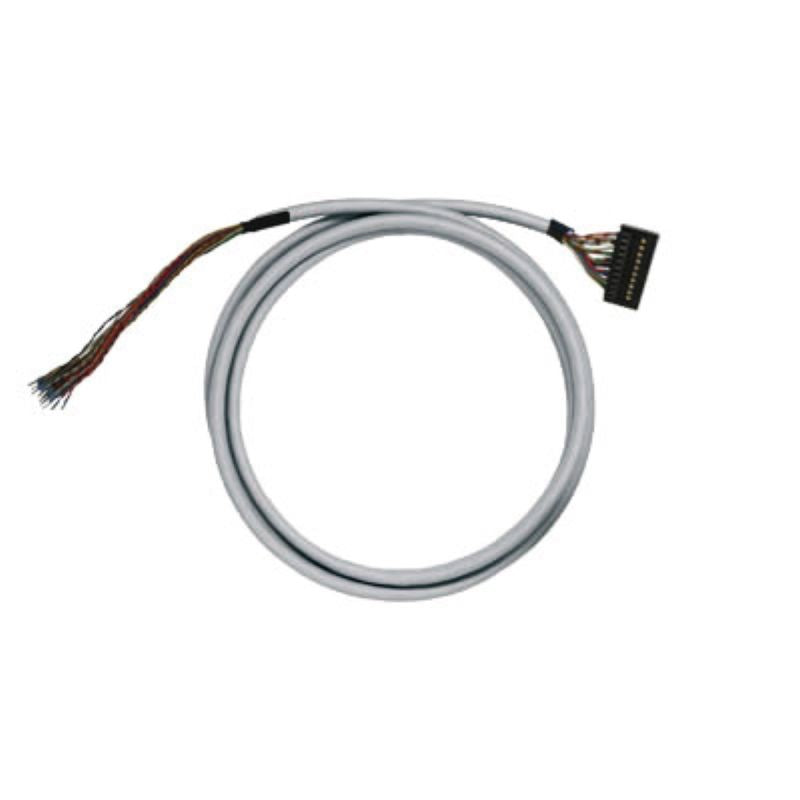

7789388050 - 5m Pre-assembled LiYY Cable for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-UNIV-HE20-LCF-5M pre-assembled cable, expertly crafted from Cable LiYY to deliver reliability for digital signal applications With a generous length of 5 meters and a cross-section of 014 mm², this cable is designed to meet your connectivity needs It features a robust connector on the PLC side with H025/10 specifications (FERRULES 025mm²) and a flat cable connector interface of HE10 20P.

The outer diameter is an impressive 86 ± 1 mm This cable also adheres to RoHS regulations and is free from SVHC materials exceeding 01 wt%, ensuring it is safe and environmentally friendly.

Features and Benefits:

•Constructed with basic material PVC.

•Net weight of 100.87 g.

•Operating temperature range of -10 to 50 °C.

•Storage temperature range of -10 to 60 °C.

•Permissible current strength per path, max of 1 A.

•Rated voltage of ≤ 60 Vdc ≤ 25 Vac.

•Suitable for digital signals.

Specifications:
