7789380050 - 5m PVC Pre-assembled Cable for Digital Signal Transmission

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

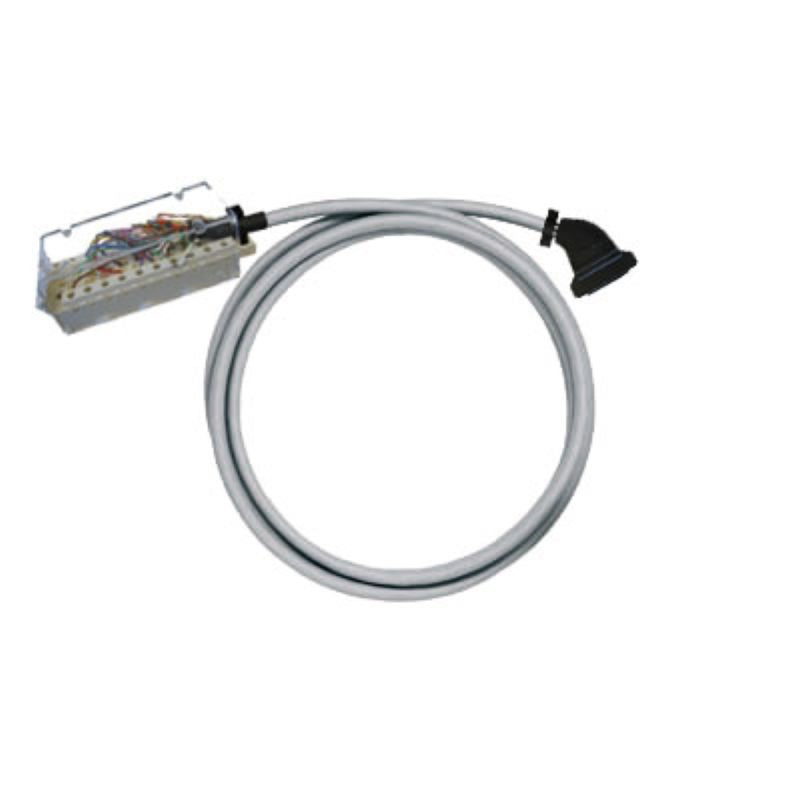

Introducing the PAC-M340-HE20-V1-5M pre-assembled cable, crafted from durable PVC material This 5-meter long cable is designed for efficient digital signal transmission and features a wire cross-section of 025 mm² It includes a 20-pin SCHNEIDER BMX FTB 2000 connector on the PLC side Rated for a maximum current of 1 A, this cable can also withstand high voltage testing of up to 1 KV for 1 second, making it a reliable choice for various applications.

Features and Benefits:

•Cable length of 5 meters.

•20-pole connector.

•Suitable for digital signals.

•Outer diameter of 8.6 ± 1 mm.

•Resistance is ≤ 80 mΩ/m.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Total current maximum is 3 A.

Specifications:
