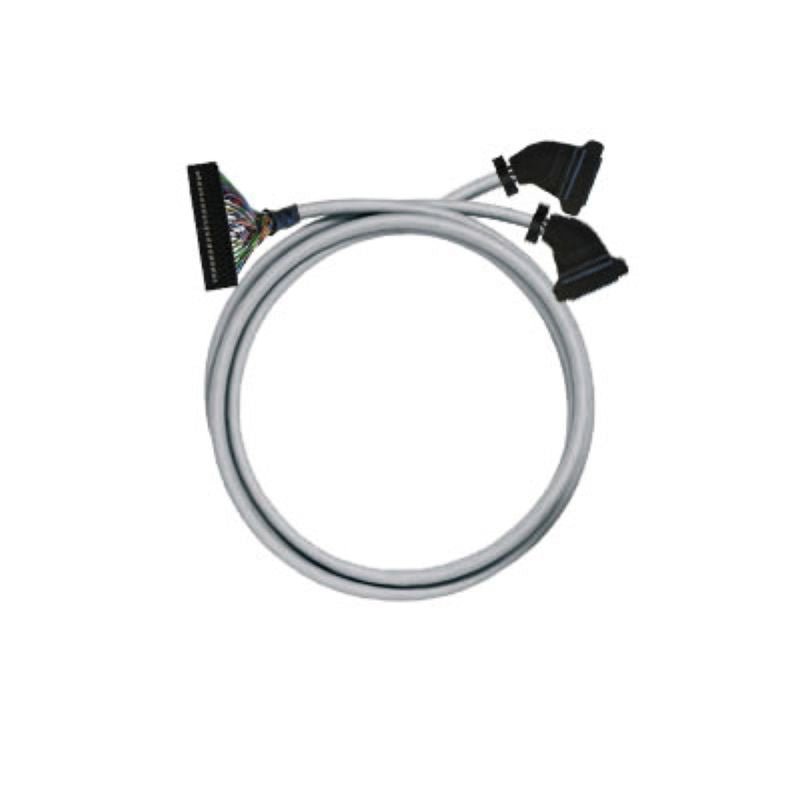

7789373030 - 3m PVC Digital Signal Cable with 0.25mm² Wire

SKU: SKU: 7789373030 Download PDF

Variant:

7789373030 - 3m PVC Digital Signal Cable with 0.25mm² Wire

Now $121.55

~~BEFORE $0.00~~ Now $121.55

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable performance with the PAC-CJ1W-HE20-V3-3M pre-assembled cable, which is expertly crafted for digital signal transmission This cable features a 025 mm² wire cross-section and spans a generous length of 3 meters Made from durable PVC material, it is built to last On one end, you will find a FUJITSU FCN723B040/2 40P connector, while the opposite end is equipped with a double flat cable connector (HE10 20P).

The cable's outer diameter measures 86 ± 1 mm, making it a versatile choice for your connectivity needs.

Features and Benefits:

•Compliant with RoHS regulations.

•No SVHC above 0.1 wt%.

•Capable of carrying signals with a maximum current strength of 1 A per path.

•Suitable for operating temperatures from -10 to 50 °C and storage temperatures from -10 to 60 °C.

•Used for digital signals.

Specifications:

Order No.	7789373030
GTIN (EAN)	4032248169504
Net weight	652 g
Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
Basic material	PVC
Cable	Cable LiYY
Cable length	3 m
Connector PLC side	FUJITSU FCN723B040/2 40P
Interface connector	2X FLAT CABLE CONNECTOR HE10 20P
Number of poles, min.	20-pole
Outer diameter	8.6 ± 1 mm
Wire cross-section	0.25 mm²
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
High voltage test	1 KV/1s
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max.	3 A
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
