7789329020 - 2m LiYY Cable, 0.25mm², 20-Pole Connector for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

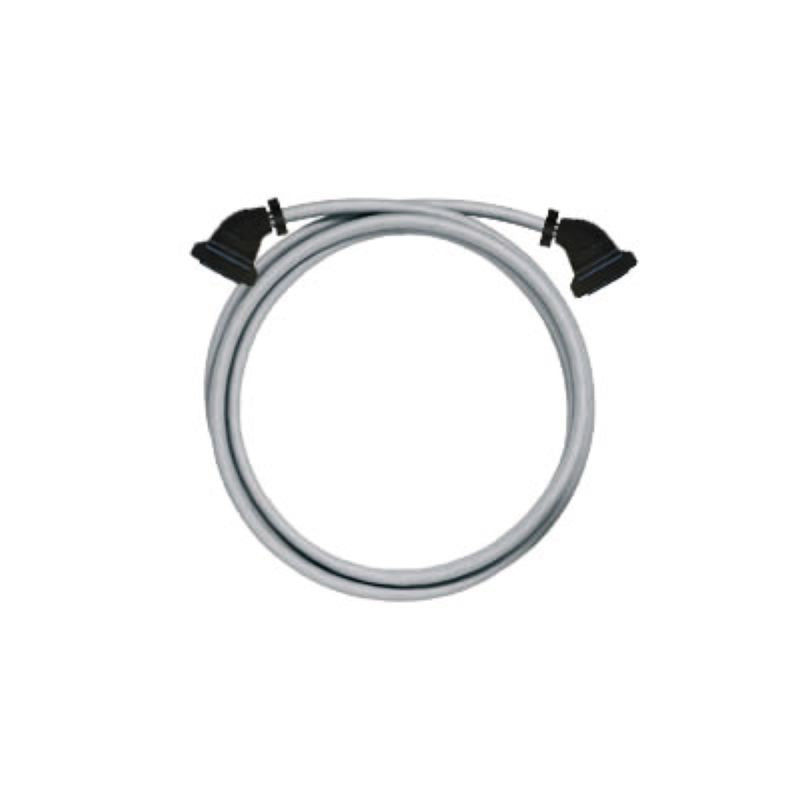

Introducing the PAC-TWDO-HE20-V3-2M pre-assembled cable, expertly crafted for efficient digital signal transmission This LiYY cable features a cross-section of 025 mm² and spans a generous length of 2 meters With an outer diameter of 86 ± 1 mm, it’s designed for easy handling On one end, you'll find a 20-pole flat cable connector HE10 configured for seamless integration with PLC systems, making it an ideal choice for various applications.

Features and Benefits:

•Net weight is 149.6 g.

•Storage temperature ranges from -10 to 60 °C.

•Operating temperature varies between -10 to 50 °C.

•Made from PVC.

•Can withstand a high voltage test of 1 KV for 1 second.

•Maximum permissible current strength per path is 1 A.

•Rated voltage can reach up to 60 Vdc and 25 Vac.

•Resistance is at most 80 mΩ/m.

•Total current capacity is a maximum of 3 A.

•Digital signals.

Specifications:
