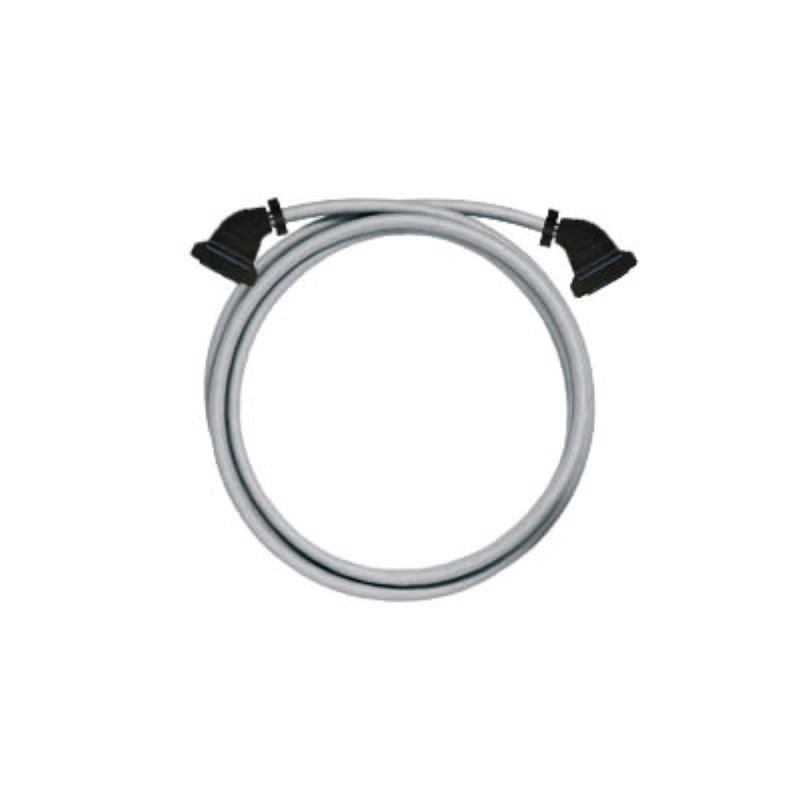

7789329005 - 0.5m LiYY Pre-Assembled Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC pre-assembled cable, engineered with advanced LiYY technology to deliver reliable digital signal transmission This cable features a wire gauge of 025 mm² and a compact length of 05 meters, making it versatile for various applications Equipped with two FLAT CABLE CONNECTOR HE10 20P connectors, it ensures a secure connection The cable's outer diameter measures 86 ± 1 mm, and it operates effectively within a temperature range of -10 to 50 °C, with storage capabilities extending from -10 to 60 °C.

Additionally, this product adheres to RoHS standards, guaranteeing it is free from Substances of Very High Concern (SVHC) exceeding 01 wt%.

Features and Benefits:

•Lightweight at net weight of 71 g.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Permissible current strength per path is max 1 A.

•Total current max is 3 A.

•Capacity of wire/shield and wire/wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Resistant with a maximum resistance of ≤ 80 mΩ/m.

•Constructed from PVC material.

•Suitable for applications requiring digital signal transmission.

Specifications:
