Description:

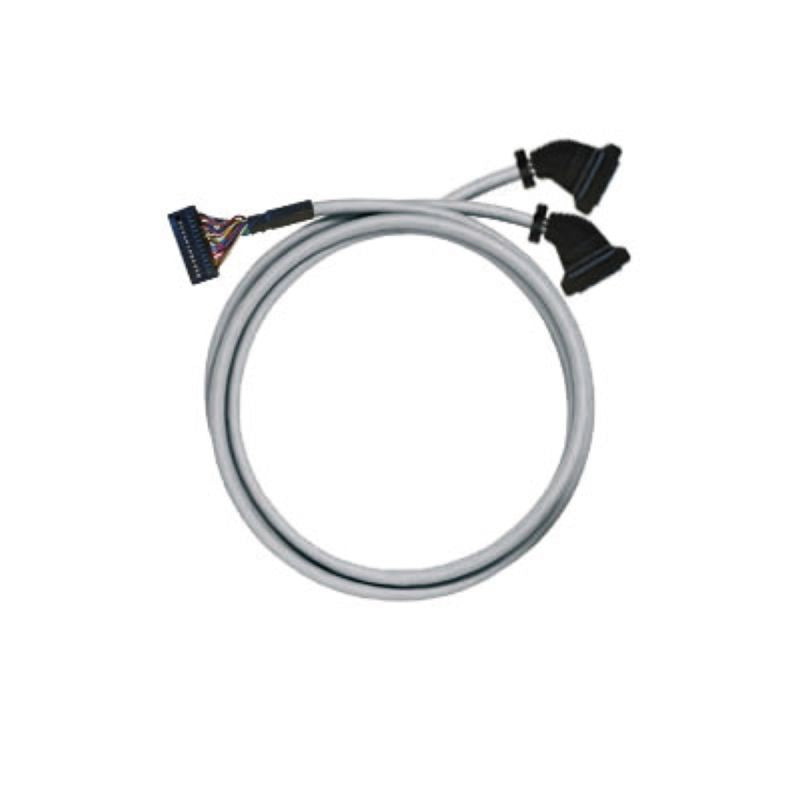

Introducing the PAC-TWDO-HE20-V1-5M, a pre-assembled PVC cable tailored for optimal digital signal transmission With a generous length of 5 meters and a flat connector on each end, this cable is versatile for various applications Its outer diameter is approximately 86 mm, making it easy to handle and install Capable of functioning in temperatures between -10°C and 50°C, it also offers storage flexibility with a range of -10°C to 60°C.

Plus, this cable meets RoHS compliance standards, ensuring an environmentally friendly choice.

Features and Benefits:

•Compliant with RoHS regulations.

•Designed for digital signals.

•PVC basic material.

Specifications:

Cable Length	5 m
Connector PLC side	FLAT CABLE CONNECTOR HE10 26P
Interface connector	2X FLAT CABLE CONNECTOR HE10 20P
Number of poles, min.	20-pole
Outer diameter	8.6 ± 1 mm
Electrical Data	{'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'High voltage test': '1 KV/1s', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '≤ 80 mΩ/m', 'Total current, max.': '3 A'}
Temperatures	{'Storage temperature': '-10...60 °C', 'Operating temperature': '-10...50 °C'}
General Data	{'Material': 'PVC', 'Cable type': 'Cable LiYY'}
Classifications	{'ETIM': {'6.0': 'EC000237', '7.0': 'EC000237', '8.0': 'EC000237', '9.0': 'EC000237', '10.0': 'EC000237'}, 'ECLASS': {'9.0': '27-24-22-20', '9.1': '27-24-22-20', '10.0': '27-24-22-20', '11.0': '27-24-22-20', '12.0': '27-24-22-20', '13.0': '27-24-22-20', '14.0': '27-24-22-20', '15.0': '27-24-22-20'}}
