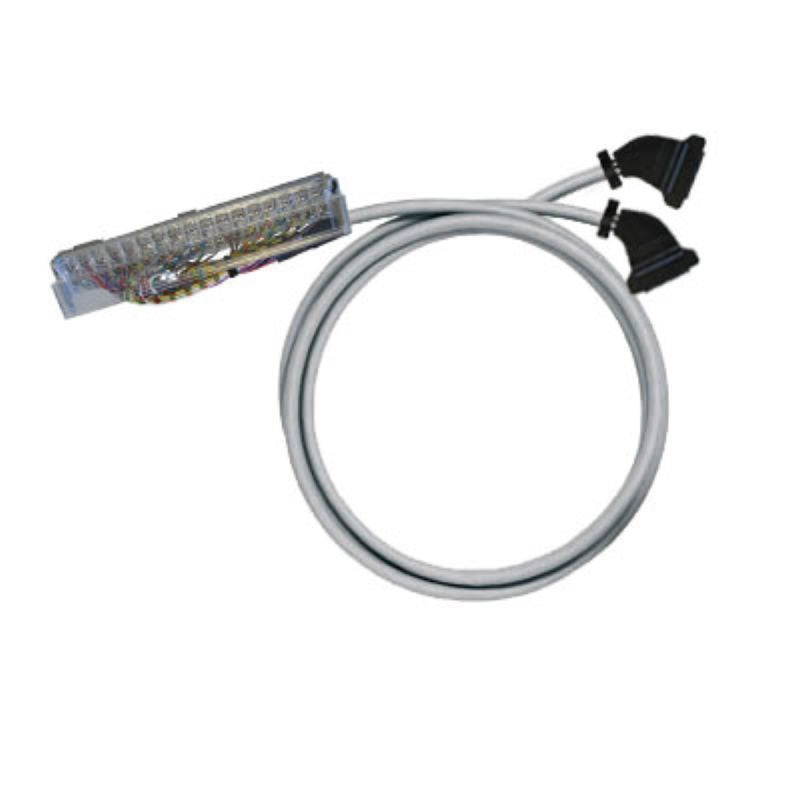

7789314020 - 2m Pre-assembled Cable with LiYY Conductors and Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the convenience of this pre-assembled PAC cable, engineered for optimal performance With a length of 2 meters, it features LiYY conductors with a cross-sectional area of 025 mm², ensuring efficient digital signal transmission On one end, you will find a SCHNEIDER TSX BLZ L01 35P connector, complemented by two HE10 20P flat cable connectors on the other side, making it versatile for various applications.

Ideal for those needing reliable connectivity in their setups.

Features and Benefits:

•Net weight is 512 g.

•Outer diameter of the cable is 8.6 ± 1 mm.

•Capable of handling a maximum current strength of 1 A per path.

•Total maximum current handling capacity is 3 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•High voltage test capacity of 1 KV for 1 second.

•Resistance is not greater than 80 mΩ/m.

•RoHS compliant.

•No SVHC above 0.1 wt%.

•Suitable for digital signal applications.

Specifications:
