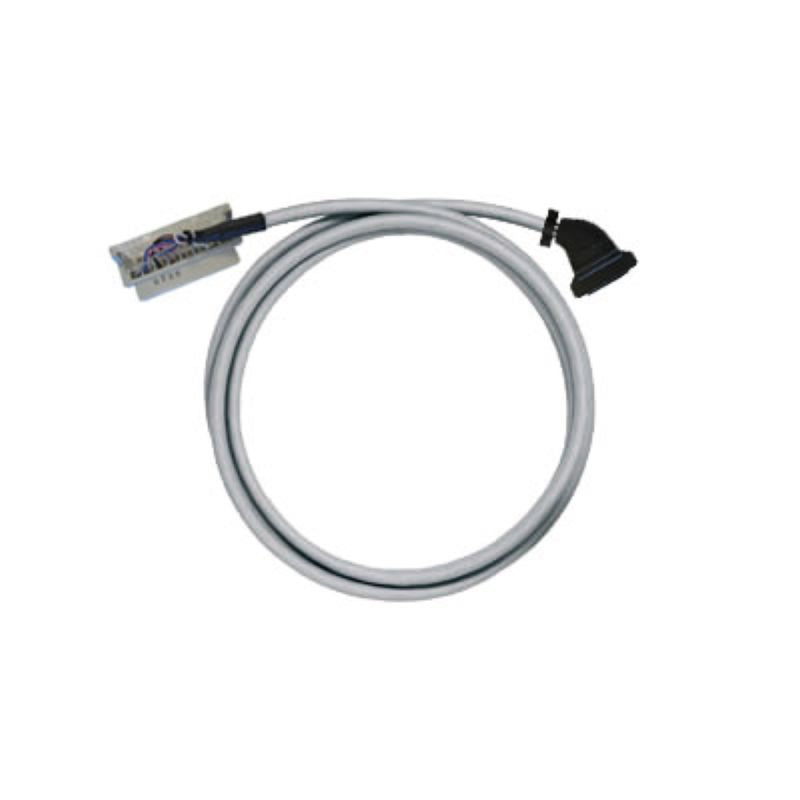

7789312050 - 5m LiYY Digital Cable with 20-Pole Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-MICR-HE20-V0-5M pre-assembled cable, crafted for seamless digital signal transmission This LiYY cable boasts a wire cross-section of 025 mm² and measures approximately 86 mm in outer diameter It is equipped with a 20-pole connector on the PLC side, specifically tailored for the SCHNEIDER TSX BLZ H01 15P model With a generous length of 5 meters, it provides ample reach for your connectivity needs.

Features and Benefits:

•Compliant with RoHS.

•Storage temperature range is -10 to 60 °C.

•Operating temperature range is -10 to 50 °C.

•Capacity of wire to shield is 300 pF/m and wire to wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Maximum permissible current strength per path is 1 A.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total maximum current is 3 A.

•Suitable for digital signals.
