7789312040 - 4m LiYY Cable with Connectors for Digital Signals

SKU: SKU: 7789312040 Download PDF

Select a Variant:

7789312040 - 4m LiYY Cable with Connectors for Digital Signals

SET THE QTY:

Now $220.87 Web pricing policy

~~BEFORE $0.00~~ Now $220.87 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

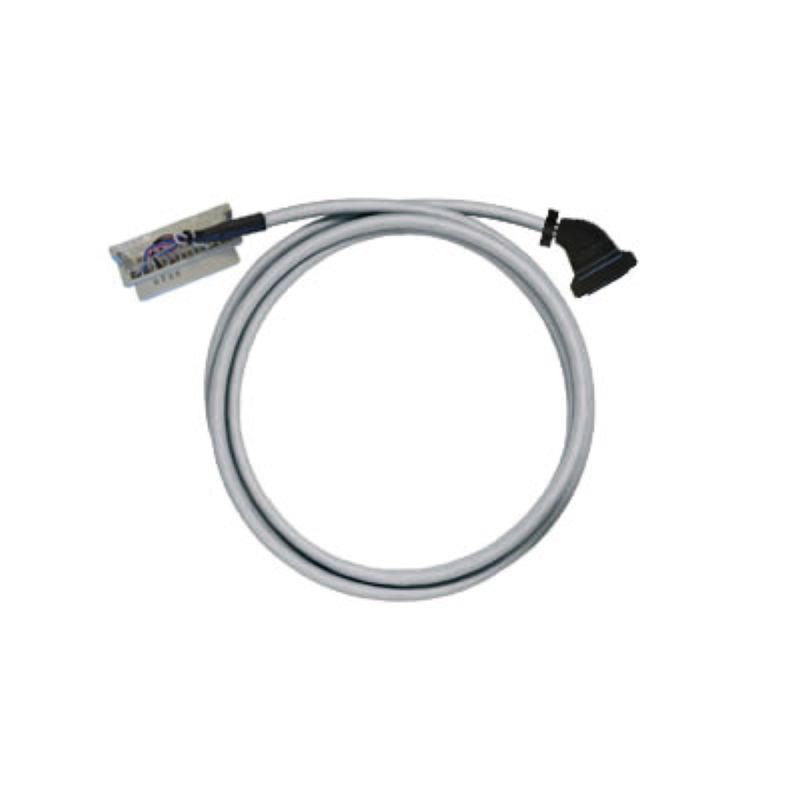

Introducing the PAC-MICR-HE20-V0-4M pre-assembled cable, optimized for digital signal transmission This versatile cable, measuring 4 meters in length, is crafted with a LiYY type and features a cross-section of 025 mm² It is equipped with connectors on both ends: a SCHNEIDER TSX BLZ H01 15P connector on one side and a FLAT CABLE CONECTOR HE10 20P on the opposite end, ensuring reliable connectivity for your devices.

Features and Benefits:

•Compliant with RoHS standards.

•FUNCTIONS effectively for digital signal transmission.

•Includes a minimum of 20 poles.

•Outer diameter measures 8.6 ± 1 mm.

Specifications:

Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
Basic material	PVC
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
High voltage test	1 KV/1s
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max.	3 A
ETIM classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237'}
ECLASS classifications	{'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
