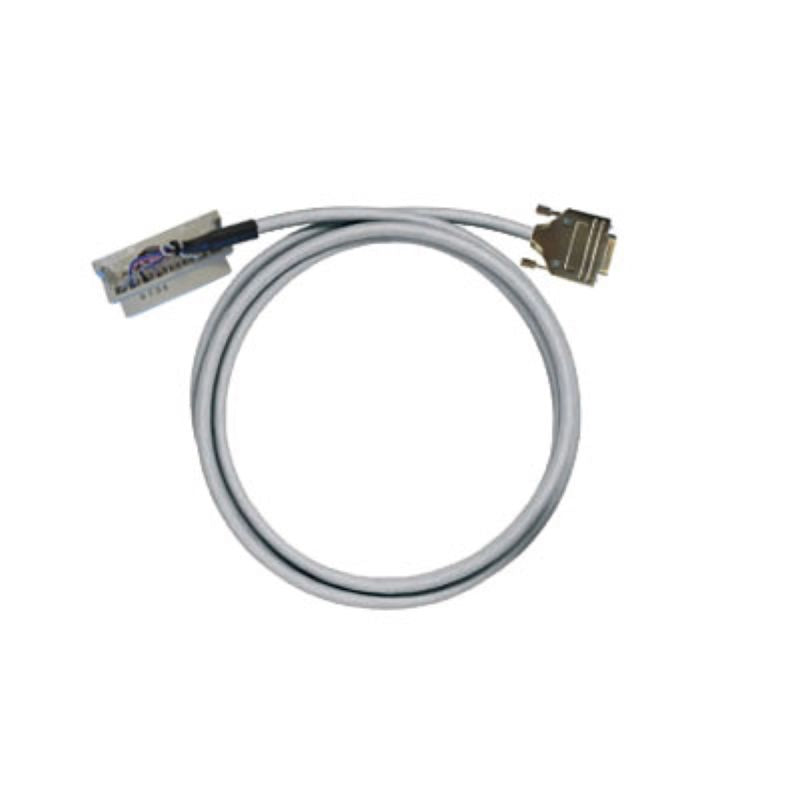

7789310050 - 5m PVC Pre-assembled Cable for SCHNEIDER & SUB-D Connectors

SKU: SKU: 7789310050 Download PDF

Variant:

7789310050 - 5m PVC Pre-assembled Cable for SCHNEIDER & SUB-D Connectors

Now $252.55

~~BEFORE $0.00~~ Now $252.55

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-MICR-SD15-V1-5M, a ready-to-use cable tailored for transferring analogue signals With a wire cross-section of 025 mm² and a generous length of 5 meters, this cable is made from durable PVC and conforms to RoHS standards One end features a SCHNEIDER TSX BLZ H01 15P connector, while the other end is equipped with a SUB-D FEMALE 15P interface connector, making it a reliable choice for various applications.

Features and Benefits:

•Pre-assembled.

•Suitable for analogue signals.

•PVC basic material.

Specifications:

Cable length	5 m
Outer diameter	8.7 ± 1 mm
Wire cross-section	0.25 mm²
Electrical Data	{'Capacity wire / shield': '300 pF/m', 'Capacity wire / wires': '300 pF/m', 'High voltage test': '1 KV/1s', 'Permissible current strength per path, max.': '1 A', 'Rated voltage': '≤ 60 Vdc ≤ 25 Vac', 'Resistance': '≤ 80 mΩ/m', 'Total current, max.': '3 A'}
Temperatures	{'Storage temperature': '-10...60 °C', 'Operating temperature': '-10...50 °C'}
Approvals	{'RoHS Compliance Status': 'Compliant', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
