7789310020 - 2m Pre-assembled LiYCY Cable with 15-Pole Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

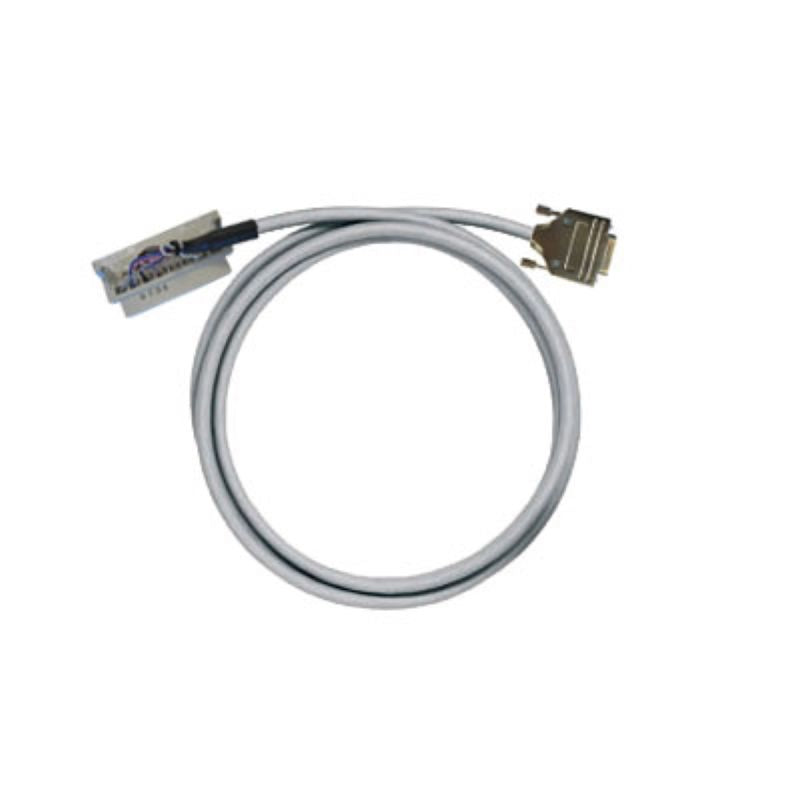

Introducing the PAC pre-assembled cable, expertly designed for your connectivity needs This cable features a LiYCY composition with a cross-sectional area of 025 mm², ensuring reliable performance It can operate optimally at temperatures up to 50 °C and is safe for storage between -10 and 60 °C One end is equipped with a 15-pole SUB-D female connector, while the opposite end showcases a SCHNEIDER TSX BLZ H01 15P connector, both tailored for handling analog signals efficiently.

Perfect for various applications requiring a dependable connection.

Features and Benefits:

•Compliant with RoHS standards.

•No SVHC content above 0.1 wt%.

•Outer diameter of 8.7 ± 1 mm.

•Permissible current strength is up to 1 A.

•Total current can reach a maximum of 3 A.

•Rated voltage up to 60 Vdc and 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•High voltage test rating of 1 KV/1s.

•Suitable for analogue signals.
