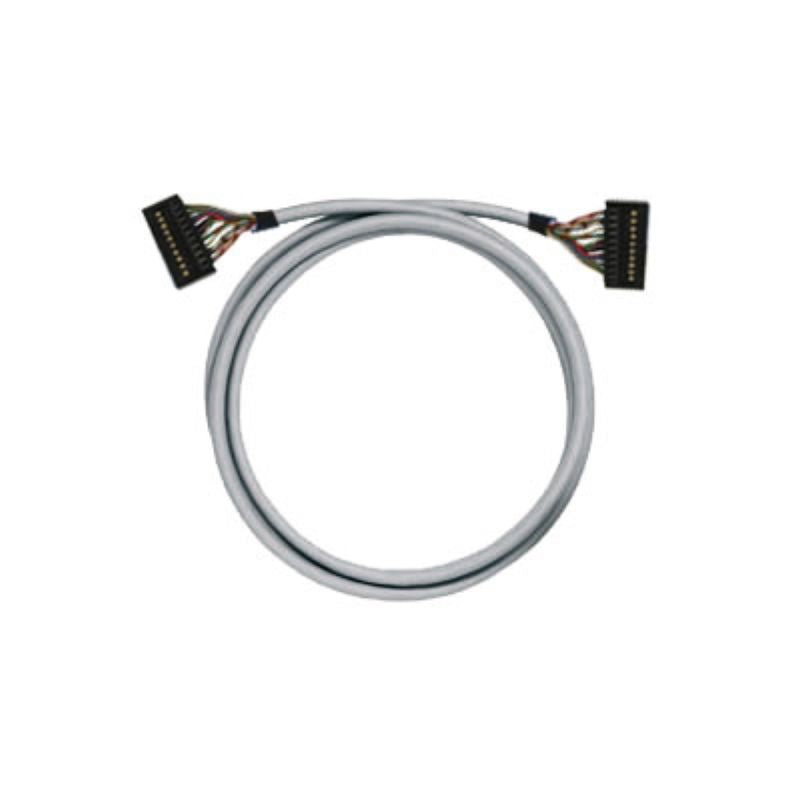

7789306060 - 6m Flat LiYY Cable with HE10 Connector, 20 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PAC-UNIV-HE20-LCH-6M, a high-quality pre-assembled cable perfect for transmitting digital signals This cable features a LiYY design with a cross-section of 014 mm² and includes a 20-pole flat connector, HE10 With an impressive length of 6 meters and an outer diameter measuring 86 ± 1 mm, it’s built for versatility This cable operates smoothly in a variety of environments, with storage temperatures ranging from -10°C to 60°C and operational temperatures from -10°C to 50°C.

A great choice for reliable connectivity in various applications.

Features and Benefits:

•Made from PVC material.

•Compliant with RoHS and has no SVHC above 0.1 wt%.

•Capacitance of 300 pF/m for both wire/shield and wire/wires.

•Can handle a maximum current strength of 1 A per path, with a total maximum current of 3 A.

•High voltage test rating of 1 KV for 1 second.

•Rated voltage up to 60 Vdc and 25 Vac.

•Resistance of ≤ 150 mΩ/m.

•Suitable for transmitting digital signals.

Specifications:
